Yunus Sheets and Plates, located in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 317L Sheets and Plates. They cater to industries around the world, delivering unmatched quality and dependability. Known for their precision engineering and adherence to international standards, the company provides products that excel in corrosion resistance, durability, and strength. Their Stainless Steel 317L Sheets and Plates are a popular choice for critical industrial applications that demand outstanding performance in tough environments. With a strong commitment to customer satisfaction and prompt delivery, Yunus Sheets and Plates remains a go-to partner for stainless steel solutions.
Stainless Steel 317L Sheets and Plates are low-carbon, molybdenum-bearing austenitic alloys that contain 18–20% chromium, 11–15% nickel, 3–4% molybdenum, along with trace amounts of manganese, silicon, and carbon. The lower carbon content enhances their weldability and reduces carbide precipitation, while the addition of molybdenum boosts resistance to pitting and crevice corrosion. These sheets and plates offer impressive tensile strength, good ductility, and remarkable toughness, even at high temperatures. Their mechanical properties make them ideal for both structural and chemical processing applications, where reliability, resistance to harsh chemicals, and a long service life are essential.

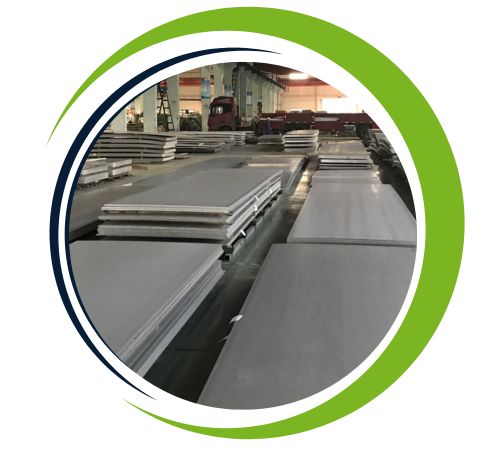

| 317L Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 317L Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 317L Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 317L Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317L Stainless Steel Sheet 3.0–10.0 mm |
| 317L SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 317L Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 317L Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 317L Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 317L Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 317L SS Strips EN 10088 SA -240-304 / 317L Strips |

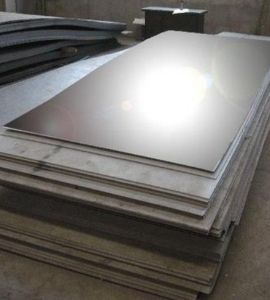

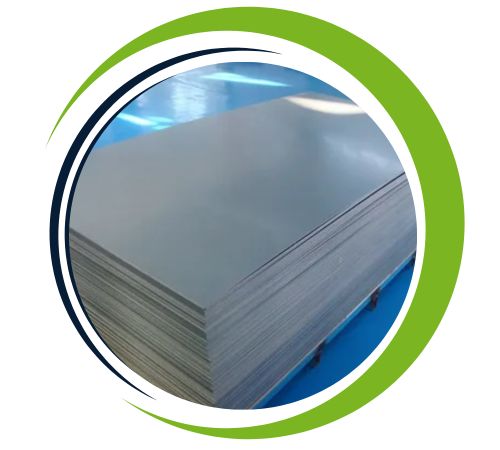

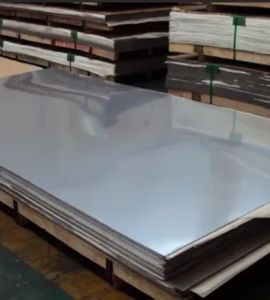

| Finish of SS 317L Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

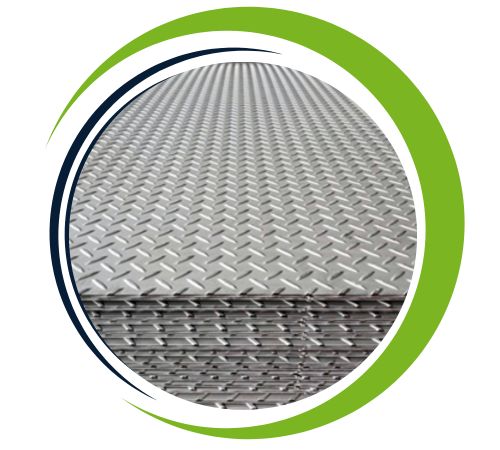

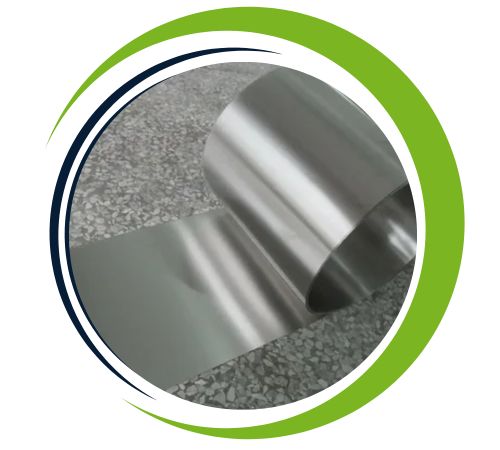

| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
| Surface Finish | Definition | Application |
|---|---|---|

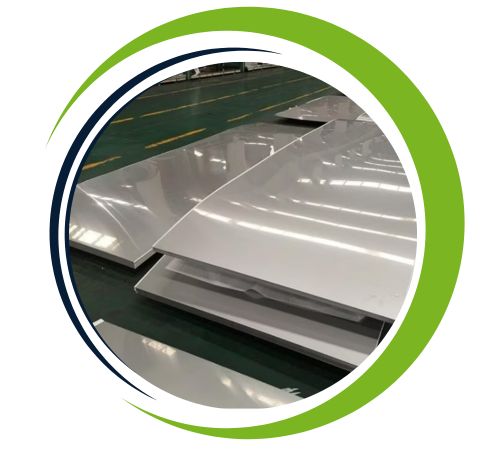

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 317L sheets and plates offer many advantages, including exceptional corrosion resistance, especially in high chloride environments Their low carbon content increases weldability, prevents carbide precipitation and provides good welding strength after the. They exhibit excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for chemically complex marine environments 317L also maintains excellent tensile strength, rigidity and formability at temperature in a higher order. These properties make them ideal for use in industries such as the chemical industry, pharmaceutical manufacturing, marine and food processing, where durability and reliability are essential.
Stainless Steel 317L Sheets and Plates are extensively utilized in industries that require exceptional corrosion resistance and high strength. They are commonly found in chemical processing equipment, condensers, and storage tanks that come into contact with aggressive chemicals. In the pharmaceutical and food sectors, their hygienic properties and resistance to contamination are highly valued. Moreover, they are used in pulp and paper processing, textile dyeing machinery, and marine environments where exposure to chlorides and acidic media is frequent. Their ability to endure harsh conditions makes them perfect for long-term industrial applications.
