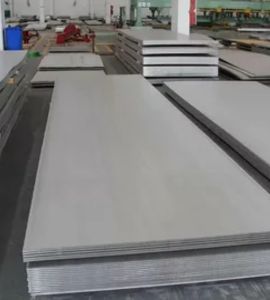

Stainless Steel 316Ti Sheets and Plates are top-notch austenitic stainless steel products that have been specially stabilized with titanium. This enhancement boosts their corrosion resistance and helps prevent intergranular corrosion during welding. By merging the outstanding corrosion resistance of 316 stainless steel with improved thermal stability, 316Ti sheets and plates become the go-to choice for high-temperature applications and tough chemical environments. They boast exceptional toughness, formability, and long-lasting durability, making them perfect for critical roles in industries like chemical, petrochemical, marine, and power generation. Crafted with precision to meet international standards, Stainless Steel 316Ti Sheets and Plates ensure reliable performance and a long service life, even in demanding industrial and structural settings.
These sheets and plates are made up of iron, chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium, which stabilizes the alloy and prevents carbide precipitation during welding. Their mechanical properties include a tensile strength of around 515–720 MPa, a yield strength of 205 MPa, and impressive elongation and toughness. The addition of titanium guarantees high-temperature stability and resistance to intergranular corrosion, while the austenitic structure allows for great formability and weldability. This unique combination makes 316Ti sheets and plates incredibly reliable for structural, chemical, and marine applications where corrosion resistance and durability are crucial.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

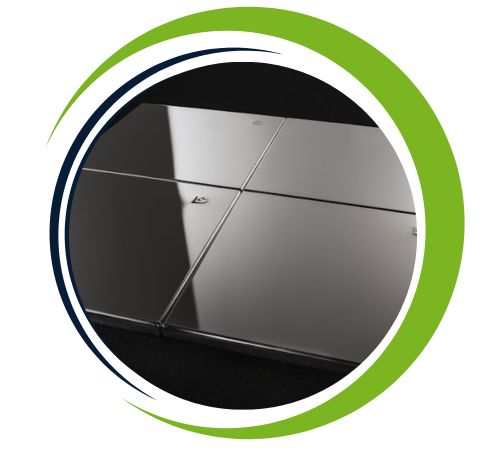

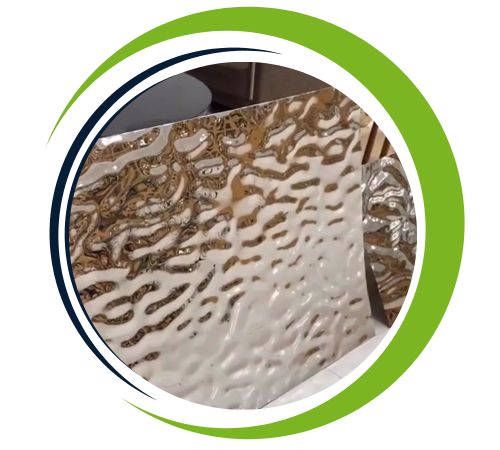

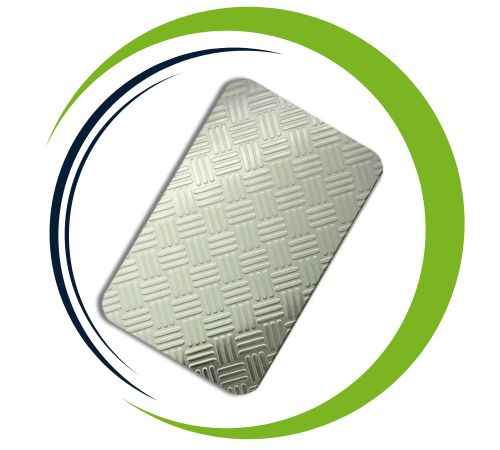

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

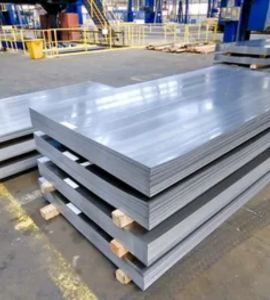

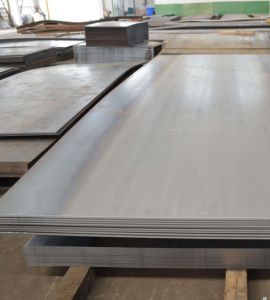

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

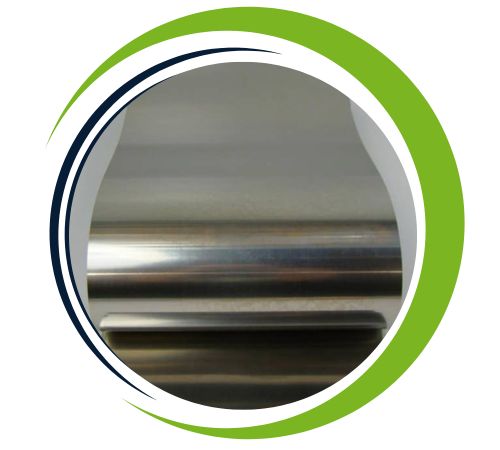

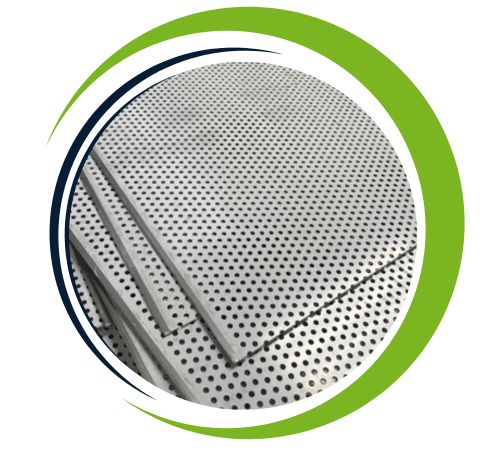

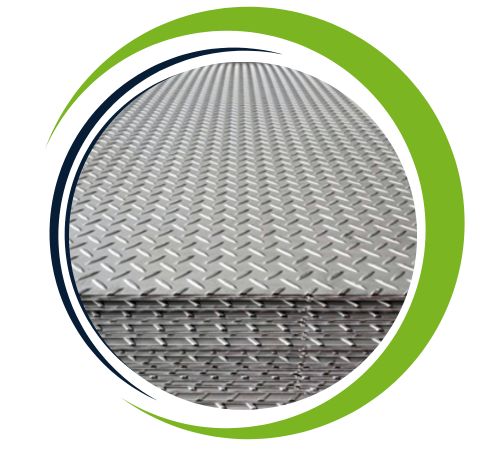

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316Ti sheets and plates offer exceptional advantages, including resistance to pitting, crack corrosion and excellent intergranular corrosion even at elevated temperatures The addition of titanium ensures stability against carbide precipitation, making it more difficult in rough environments. These sheets are strong, have excellent high-temperature strength and mechanical performance, making them ideal for complex applications. They resist oxidation and scaling, providing durability in marine, chemical and industrial applications. In addition, they are easy to manufacture, weld and maintain, providing cost effective and reliable for structural and process equipment applications.
Stainless Steel 316Ti Sheets and Plates find extensive use in industries that demand resistance to corrosion and high-temperature stability. In chemical and petrochemical plants, they are utilized for heat exchangers, process vessels, piping, and reactors. The marine industry relies on them for shipbuilding components, offshore platforms, and seawater systems. In the power generation sector, they are applied in boilers, condensers, and turbine components. Additionally, the food processing and pharmaceutical industries use them for hygienic equipment and cleanroom surfaces.
