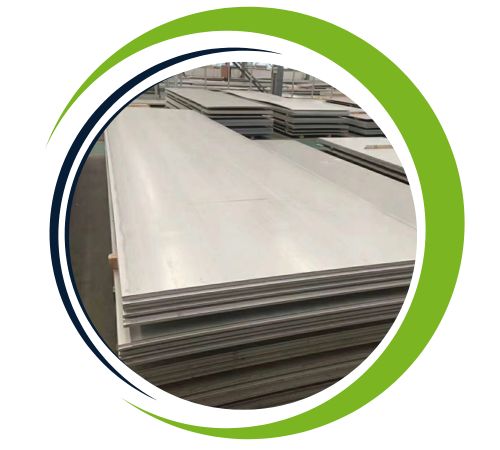

Yunus Sheets and Plates, located in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of top-notch Hastelloy C22 Sheets and Plates, meeting a wide range of industrial needs. With a strong focus on precision engineering and adherence to international standards, this company is known for delivering products that excel in durability, corrosion resistance, and mechanical strength. The Hastelloy C22 Sheets and Plates are designed to endure even the toughest conditions, making them ideal for industries that require exceptional performance. Yunus Sheets and Plates prioritizes customer satisfaction, prompt delivery, and competitive pricing, positioning itself as a trusted partner for clients in the chemical, marine, petrochemical, and industrial processing sectors.
The composition of Hastelloy C22 Sheets and Plates includes nickel, chromium, and molybdenum, along with small amounts of tungsten and iron, which together provide impressive resistance to both oxidizing and reducing environments. They are particularly effective against pitting, stress-corrosion cracking, and crevice corrosion. These sheets and plates boast high tensile strength, toughness, and durability, even in high-temperature and aggressive chemical environments. With a density of 8.69 g/cm³ and a melting range of 1399–1427°C, Hastelloy C22 offers remarkable mechanical stability, making it a go-to material for demanding industrial applications.

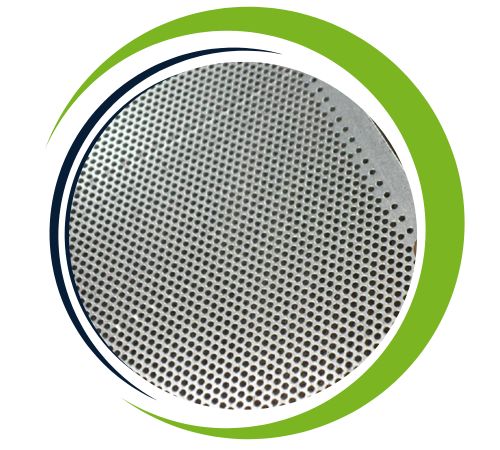

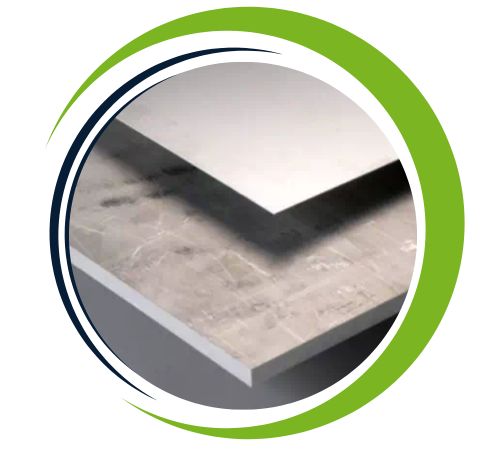

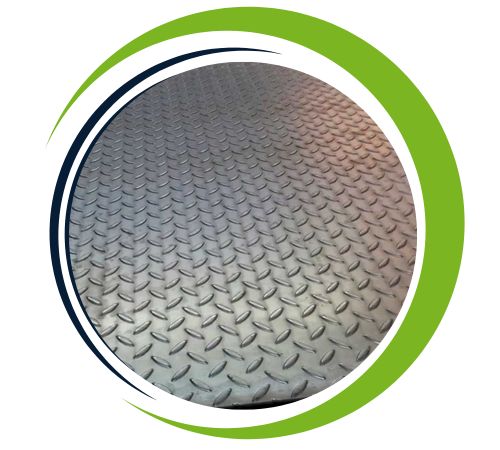

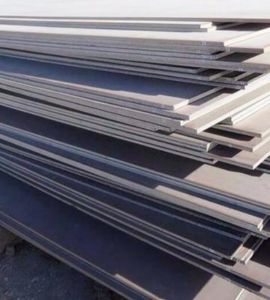

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | ASME SB575, ASTM B575 UNS N06022, AMS, MSRR, BS |
| ASTM B575 Alloy C22 Plate Length | 0-12mm or as required |
| Specification of Plate | ASTM B575 UNS N06022, ASME SB575, MSRR, BS, AMS 4544 sheet |
| UNS N06022 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |

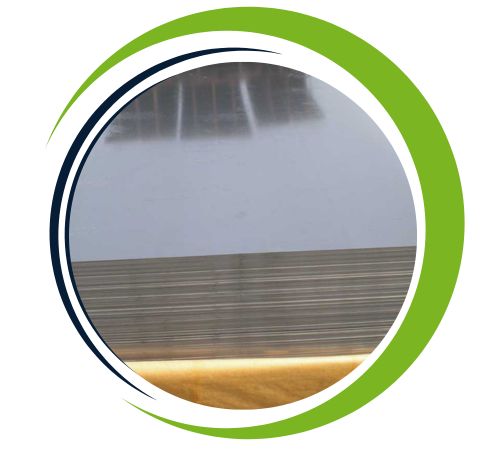

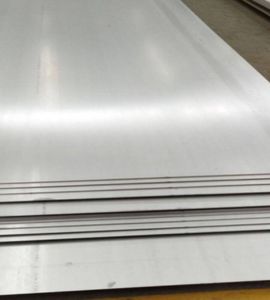

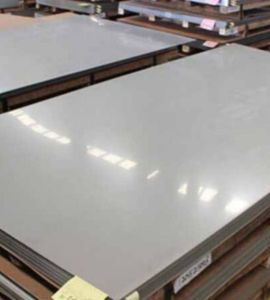

| Alloy C22Plate Process | Hot/ Cold Rolled |

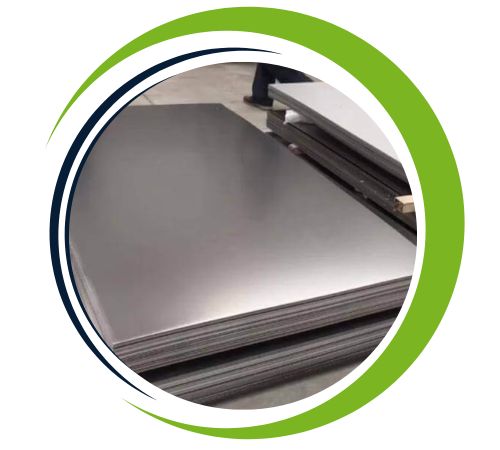

| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C22 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C22 sheets and plates offer outstanding advantages, making them ideal for use in harsh environments. They provide excellent resistance to both oxidizing and reducing agents, ensuring protection against pitting, crevice corrosion, and stress corrosion cracking. Their versatility allows them to perform reliably in aggressive chemical processes, including acidic and chlorinated environments. With high mechanical strength and exceptional durability, they are suitable for high-temperature applications. Additionally, Hastelloy C22 sheets and plates exhibit excellent weldability, ease of fabrication, and long service life, reducing maintenance and enhancing efficiency in demanding industrial operations.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy C22 Sheets and Plates find extensive use in industries where corrosion resistance and durability are paramount. They are commonly used in chemical processing equipment, flue gas scrubbers, and waste treatment facilities, where the ability to withstand harsh chemicals is crucial. In marine settings, they resist degradation from seawater exposure. Additionally, their non-reactive properties make them suitable for pollution control, pulp and paper production, and pharmaceutical equipment. Power generation plants and petrochemical industries depend on these sheets and plates for components that face extreme conditions, ensuring they last over time.
