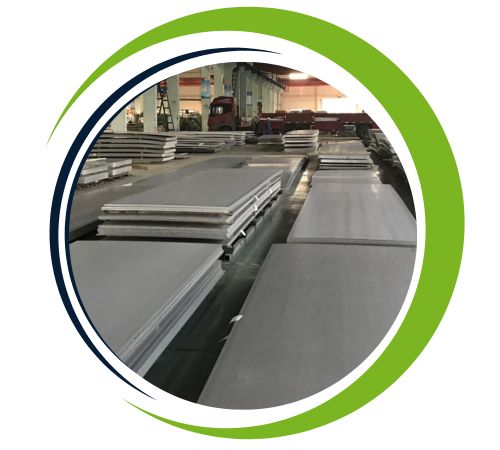

Yunus Sheets and Plates, located in Istanbul, Turkey, is a reputable manufacturer and supplier of top-notch Stainless Steel 317 Sheets and Plates. With a strong focus on quality and innovation, this company provides premium products that adhere to international standards, ensuring they are durable and perform exceptionally well across various industries. The Stainless Steel 317 Sheets and Plates are meticulously crafted and are highly regarded for their outstanding resistance to corrosion, impressive strength, and dependable toughness. Yunus Sheets and Plates has earned a solid reputation by offering tailored solutions that cater to a wide range of customer needs, making them a go-to partner for all stainless steel sheet and plate requirements.
These Stainless Steel 317 Sheets and Plates are primarily made up of chromium, nickel, and molybdenum, which gives them superior corrosion resistance compared to regular stainless steels. With about 18% chromium, 11-15% nickel, and 3-4% molybdenum, this grade effectively resists pitting and crevice corrosion. On the mechanical side, it boasts high tensile strength, excellent creep resistance, and good ductility, making it perfect for challenging environments. Its ability to maintain strength even at high temperatures, along with its toughness, makes it an excellent choice for chemical and industrial applications that demand top-notch corrosion performance.
| 317 Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 317 Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 317 Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 317 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317 Stainless Steel Sheet 3.0–10.0 mm |
| 317 SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 317 Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 317 Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 317 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 317 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 317 SS Strips EN 10088 SA -240-304 / 317 Strips |

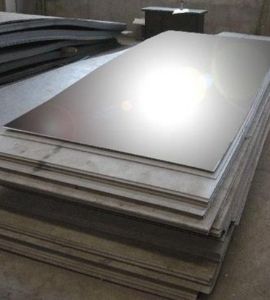

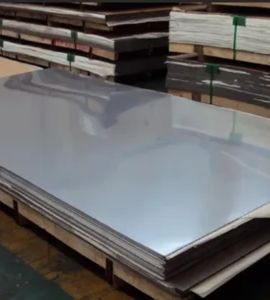

| Finish of SS 317 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

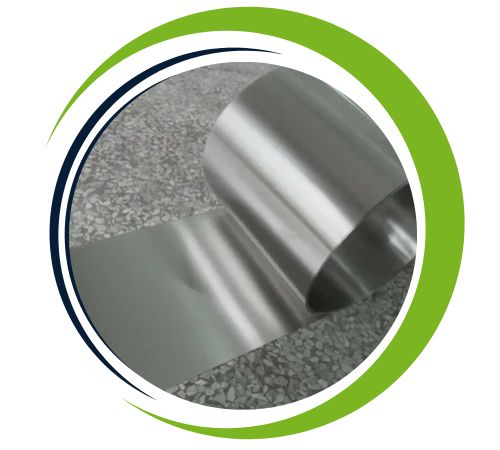

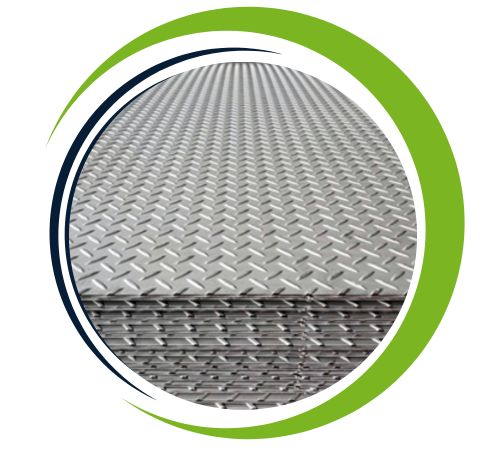

| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| Surface Finish | Definition | Application |
|---|---|---|

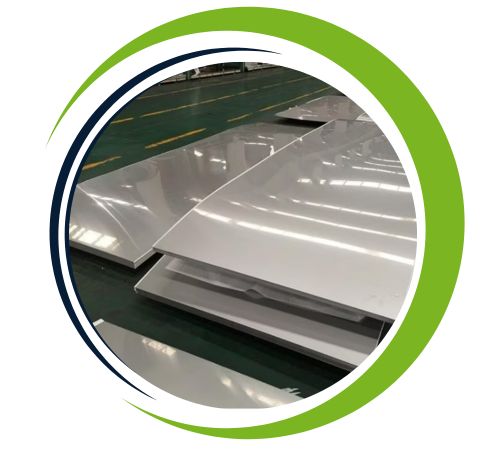

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 317 sheets and plates provide exceptional corrosion resistance, especially in acidic environments, making them ideal for chemical, petrochemical and pharmaceutical applications Due to their high chromium and molybdenum content, they provide excellent durability and strength at higher temperatures. These materials are highly resistant to pitting, crevice corrosion, and stress corrosion cracking. Additionally, stainless steel 317 is easy to weld, fabricate and maintain, providing long service life. Its aesthetic appeal and oxidation resistance further enhance its suitability for building and construction applications, and provide functional and visual advantages
Stainless Steel 317 Sheets and Plates find extensive use in industries that require exceptional resistance to harsh environments. They are commonly utilized in chemical and petrochemical processing equipment, power generation facilities, marine applications, and the pulp and paper sector. Their high resistance to acid corrosion makes them perfect for heat exchangers, evaporators, and storage tanks that handle corrosive substances. Additionally, they are employed in food processing equipment, pharmaceutical manufacturing, and pollution control systems. Thanks to their remarkable mechanical and corrosion-resistant properties, Stainless Steel 317 Sheets and Plates guarantee durability, safety, and performance in even the most demanding situations.
