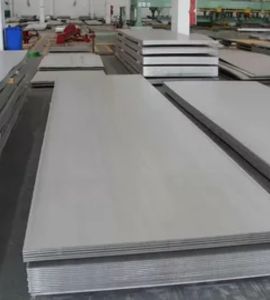

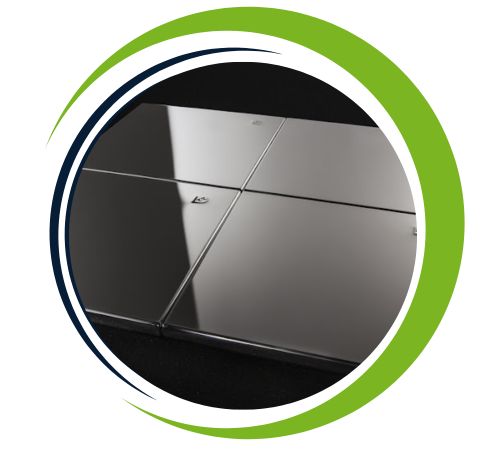

Yunus Sheets and Plates, located in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of Stainless Steel 316L Sheets and Plates. They’re known for their commitment to precision, durability, and top-notch performance. With cutting-edge production facilities and rigorous quality controls in place, the company guarantees products that boast consistent thickness, a smooth surface finish, and outstanding mechanical properties. Their Stainless Steel 316L Sheets and Plates find applications across various industries, including chemical processing, marine, pharmaceuticals, food, and construction. By providing materials that blend corrosion resistance, strength, and reliability, Yunus Sheets and Plates plays a vital role in supporting critical applications in demanding environments around the globe.
Stainless Steel 316L is a low-carbon austenitic stainless steel that contains 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boosts its corrosion resistance, particularly against chlorides and acidic conditions. The lower carbon content enhances its resistance to sensitization and intergranular corrosion after welding. These Stainless Steel 316L Sheets and Plates offer a tensile strength of about 485 MPa, exceptional toughness even at cryogenic temperatures, and impressive durability under tough conditions.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

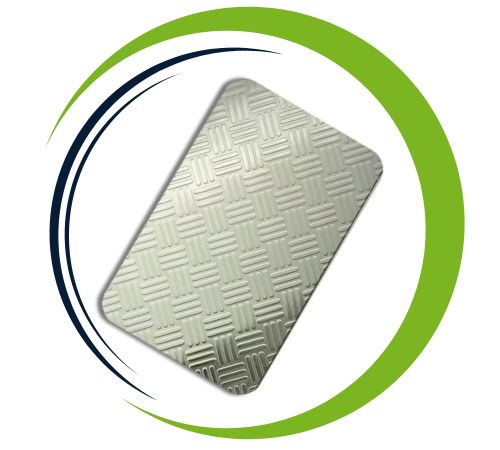

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

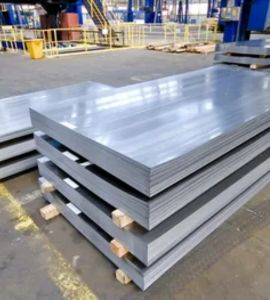

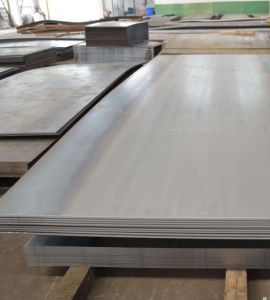

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

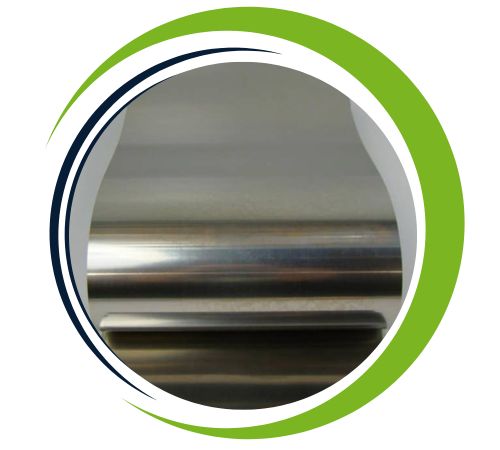

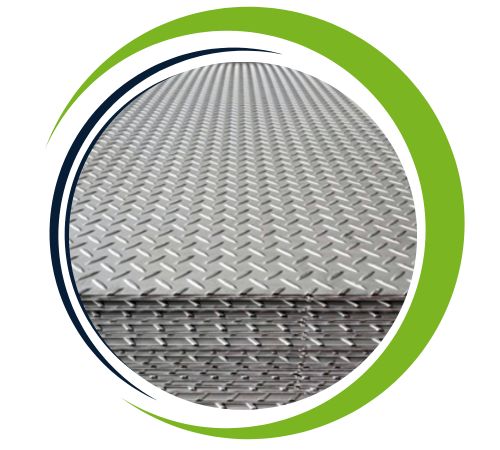

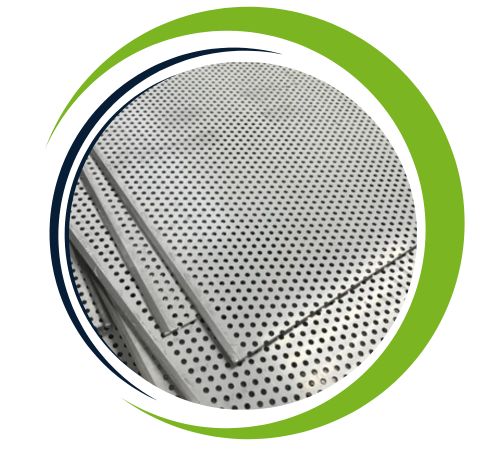

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316L sheets and plates offer many advantages, including excellent corrosion resistance, especially against chloride and harsh environments, making them ideal for marine and chemical consumption use This low-carbon material reduces carbide precipitation, enhances weldability and prevents intergranular corrosion. 316L is highly resistant to high temperature pitting, crevice corrosion and oxidation. It also has excellent mechanical properties, such as high strength, durability and flexibility. These characteristics make it suitable for industries such as pharmaceuticals, food processing and petrochemicals, where reliability and long-term performance are important.
You’ll find Stainless Steel 316L Sheets and Plates widely used in marine settings, chemical processing facilities, and pharmaceutical equipment due to their strong resistance to pitting and crevice corrosion. They’re also popular in food and beverage processing, heat exchangers, medical devices, and architectural applications where hygiene and durability are paramount. Plus, they’re perfect for welded components that face aggressive environments, ensuring they last and maintain their structural integrity. With their remarkable corrosion resistance, weldability, and mechanical strength, Stainless Steel 316L Sheets and Plates are the go-to choice for industries that demand high performance in challenging service conditions.
