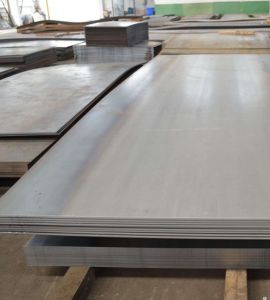

Yunus Sheets and Plates, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of high-quality stainless steel products, particularly Stainless Steel 310H Sheets and Plates. Known for their precision engineering and strict quality control, they serve a variety of industrial sectors, offering durable and dependable materials for essential applications. Their Stainless Steel 310H Sheets and Plates are designed to endure extreme temperatures and harsh environments, making them perfect for both local and global markets. With a strong focus on customer satisfaction, Yunus Sheets and Plates guarantees timely deliveries and customized solutions to meet each client’s unique needs.
The composition of Stainless Steel 310H Sheets and Plates primarily includes iron, chromium (24–26%), and nickel (19–22%), along with small amounts of carbon (0.08–0.25%) to boost high-temperature strength. This austenitic alloy is known for its excellent oxidation resistance and maintains its mechanical integrity even at elevated temperatures. It boasts a tensile strength of about 515–620 MPa, a yield strength of around 205–310 MPa, and an elongation of 30–40%. The high levels of chromium and nickel provide outstanding corrosion resistance, while its stability at high temperatures minimizes scaling, making it perfect for heat-intensive applications and ensuring a long service life in challenging environments.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.00 | 0.045 | 0.03 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | – | – | – | – | – |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 310H sheets and plates offer several key benefits. They provide excellent resistance to oxidation and corrosion, especially at high temperatures, making them ideal for harsh environments. With excellent strength and durability, 310H is well suited for applications between thermal cycling and high temperatures, such as furnaces, heat exchangers and boilers Its high carbon content increases its creep strength and stress breakdown properties, and provides it works for a long time. In addition, it maintains excellent weldability and formability, providing versatility for various engineering and fabrication applications.
Stainless Steel 310H Sheets and Plates are extensively utilized in industries that demand high-temperature performance and corrosion resistance. They are particularly suited for furnace parts, heat exchangers, kilns, and boiler components, where extreme heat and oxidation are common. Additionally, they are used in petrochemical processing, power generation, and chemical plants. The material’s durability and thermal stability make it ideal for automotive exhaust components, gas turbines, and high-temperature piping systems. Its resistance to scaling and corrosion guarantees long-term reliability in demanding applications.
