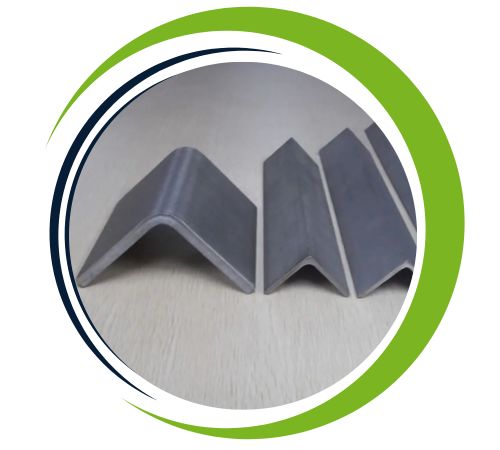

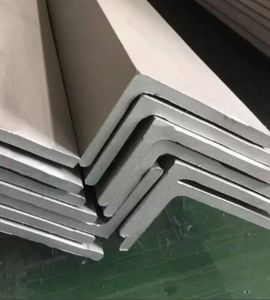

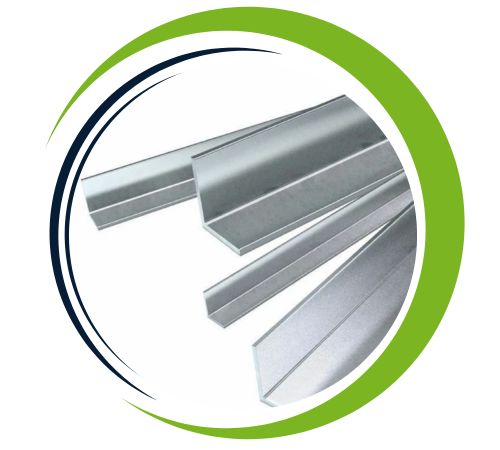

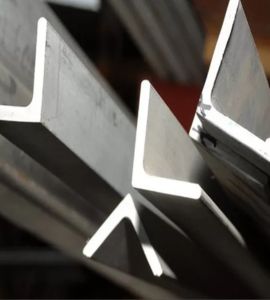

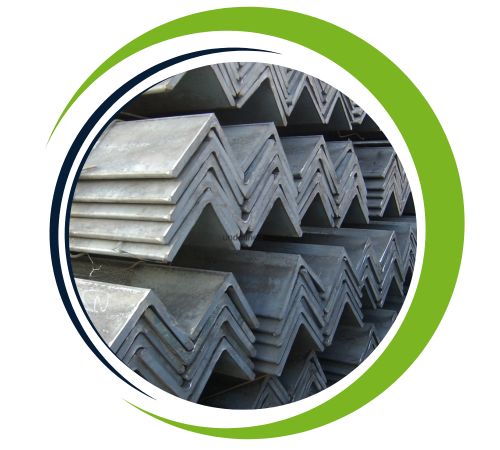

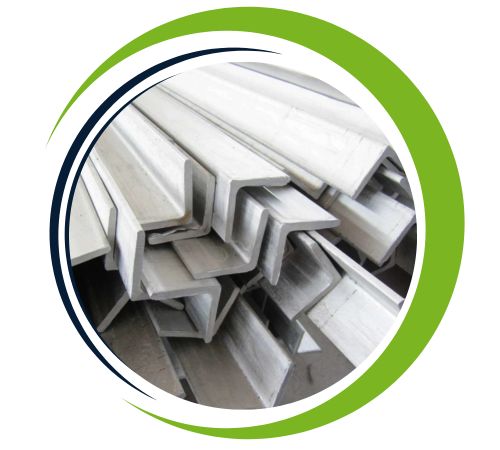

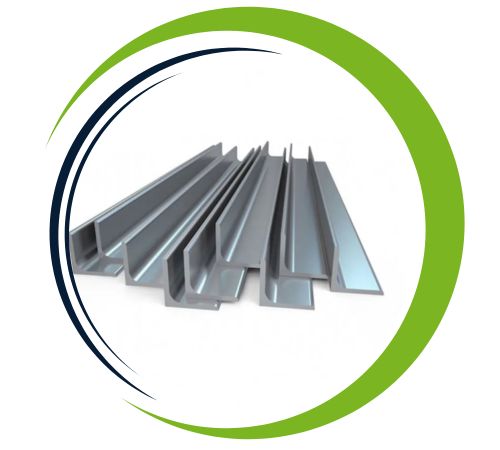

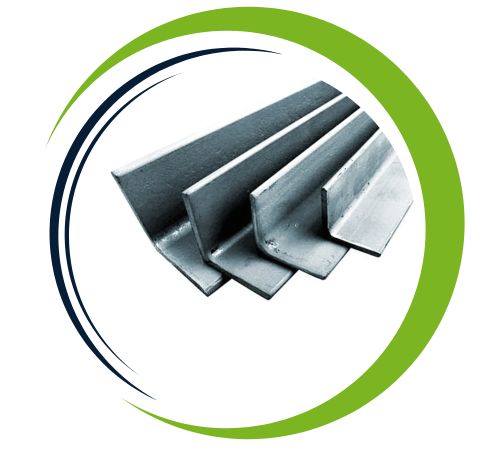

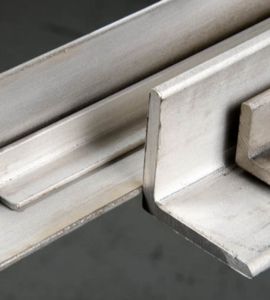

Yunus Sheets and Plates, based in Istanbul, Turkey, is a reputable manufacturer and supplier of Stainless Steel Angles. They focus on delivering high-quality products that are built for strength, durability, and resistance to corrosion. Using cutting-edge production methods and rigorous quality control, these angles are designed to perform reliably in tough industrial and structural settings. Yunus Sheets and Plates is committed to ensuring precision, long-lasting reliability, and consistent quality in every item they produce. Stainless Steel Angles find their place in various industries, including construction, automotive, chemical, and marine, thanks to their exceptional structural integrity, ability to withstand harsh environments, and enduring performance—making them perfect for applications where safety and durability are paramount.
These Stainless Steel Angles are primarily made of iron, with chromium (16–20%), nickel (0–10%), and trace amounts of carbon and other alloying elements. This unique blend gives them outstanding corrosion and oxidation resistance, along with impressive durability. On the mechanical side, they boast a tensile strength of 400–600 MPa, good yield strength, and remarkable toughness. Plus, they offer excellent ductility, weldability, and formability, which helps them maintain their structural integrity even under heavy loads and challenging conditions. Their mix of strength, corrosion resistance, and versatility makes them ideal for a broad spectrum of industrial and engineering applications.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 201 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Temper | Tensile Strength | Yield Strength | Elongation | Rockwell | ||
|---|---|---|---|---|---|---|
| KSi | MPa | KSi | MPa | in 2 inches % | ||
| 1/2 Hard | 150 | -1034 | 110 | -758 | 10 | C-32 |
| 1/4 Hard | 125 | -862 | 75 | -517 | 20 | C-25 |
| 3/4 Hard | 175 | -1207 | 135 | -931 | 7 | C-37 |
| Annealed | 95 | -655 | 45 | -310 | 40 | B-90 max. |
| Full Hard | 185 | -1276 | 140 | -965 | 5 | C-41 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 201 | S20100 | 1.4372 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel angle have many advantages, making them popular in construction and manufacturing. They are very strong, corrosion resistant, and remain strong even in extreme temperatures. Stainless steel corners also make good aesthetic appeal due to their elegant design. Minimal maintenance is required, to ensure longevity. In addition, their versatility, ease of manufacture, and strength-to-weight ratio make them ideal for construction applications. Their resistance to harsh chemical and environmental conditions ensures reliability and efficiency in the automotive, marine and construction industries.
| Width (mm) | Thickness (mm) | Width (Inches) | Thickness (Inches) |
|---|---|---|---|
| 20 x 20 | 3 to 5 | 3/4″ | 1/8 to 1/4 |
| 25 x 25 | 3 to 5 | 1″ | 1/8 to 1/4 |
| 30 x 30 | 3 to 5 | 1.1/8 | 1/8 to 1/4 |
| 32 x 32 | 3 to 6 | 1.1/4 | 1/8 to 1/4 |
| 35 x 35 | 3 to 6 | 1.3/8 | 1/8 to 1/4 |
| 38 x 38 | 3 to 6 | 1.1/2 | 1/8 to 1/4 |
| 40 x 40 | 3 to 6 | 1.5/8 | 1/8 to 1/4 |
| 45 x 45 | 3 to 6 | 1.3/4 | 1/8 to 1/4 |
| 50 x 50 | 3 to 6 | 2″ | 1/8 to 1/4 |
| 60 x 60 | 5 to 6 | 2.3/8 | 3/16 to 1/4 |
| 65 x 65 | 5 to 6 | 2.1/2 | 3/16 to 1/4 |
| 70 x 70 | 5 to 6 | 2.3/4 | 3/16 to 1/4 |
| 75 x 75 | 5 to 6 | 3″ | 3/16 to 1/4 |
In industries that demand durability, strength, and corrosion resistance, Stainless Steel Angles are widely utilized. In construction, they serve in frameworks, structural supports, bridges, and architectural elements. The automotive sector employs them for chassis components, reinforcements, and mounting structures. In the chemical and food processing industries, they are essential for tanks, piping systems, and corrosion-resistant frameworks. Additionally, these angles are crucial in marine applications, offshore structures, and power generation equipment, where long-term reliability is a must.
