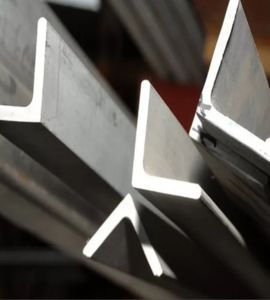

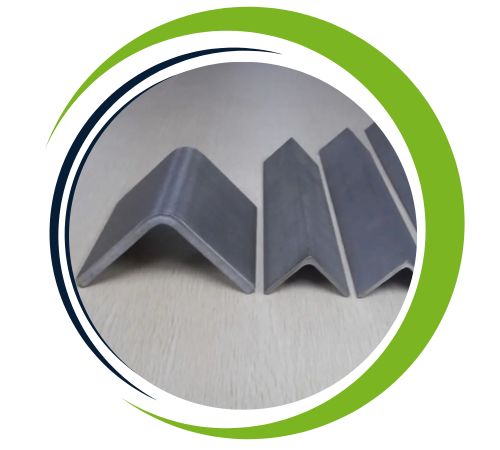

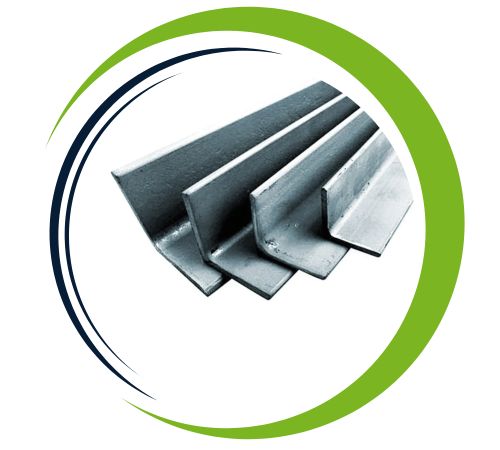

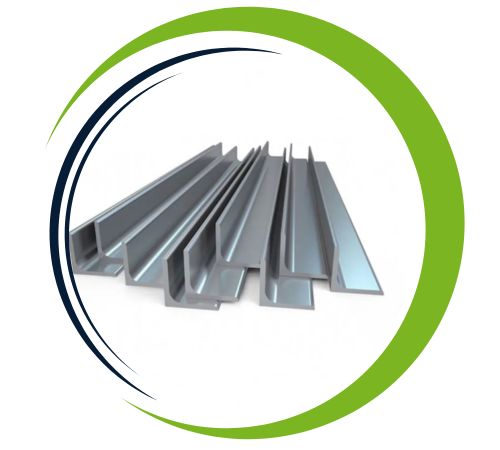

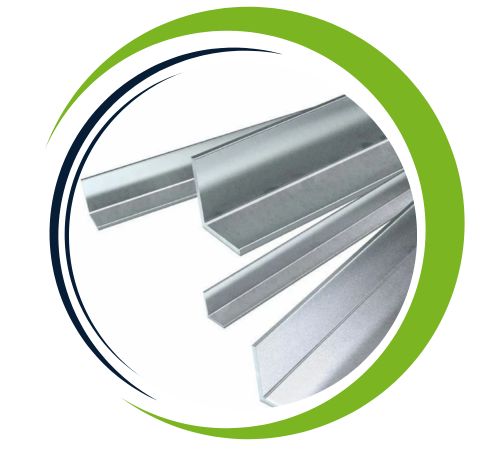

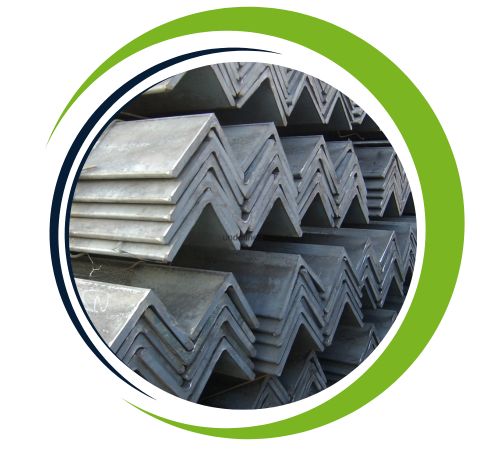

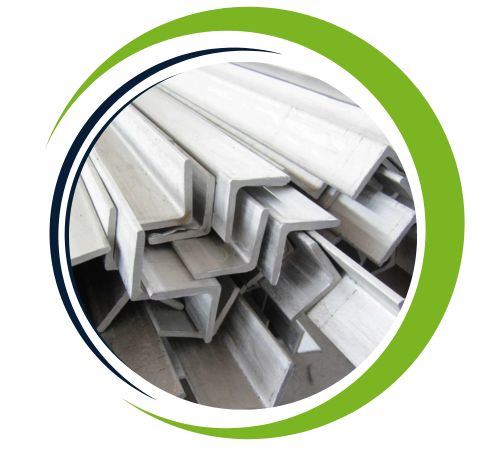

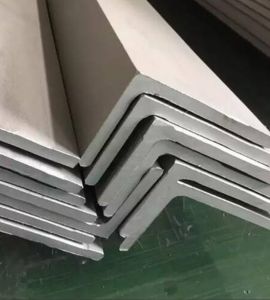

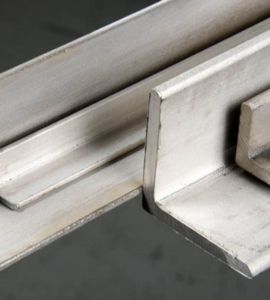

Yunus Sheets and Plates, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Stainless Steel 316Ti Angles. They pride themselves on delivering high-quality stainless steel products that are built to last, offering exceptional durability, resistance to corrosion, and performance under high temperatures. With a reputation for precision manufacturing and strict adherence to international standards, the company ensures that their angles maintain strength and reliability, even in the toughest conditions. The Stainless Steel 316Ti Angles are specially stabilized with titanium to prevent sensitization, which guarantees long-lasting resistance to intergranular corrosion. Thanks to their advanced production facilities and rigorous quality control, Yunus Sheets and Plates provides products that are perfect for a variety of applications, including petrochemical, marine, chemical processing, construction, and industrial uses around the globe.
These Stainless Steel 316Ti Angles are an austenitic stainless steel alloy primarily made up of iron, chromium (16–18%), nickel (10–14%), molybdenum (2–3%), titanium, carbon, and trace elements like manganese, silicon, phosphorus, and sulfur. The addition of titanium stabilizes the structure, preventing chromium carbide from forming during welding and boosting resistance to intergranular corrosion. On the mechanical side, these angles showcase impressive tensile and yield strength, outstanding toughness, and good ductility. They maintain their dimensional stability and mechanical integrity even when faced with thermal and chemical stress, making them ideal for structural and industrial applications that demand long-term reliability in corrosive environments.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316Ti angle provides excellent corrosion resistance thanks to its titanium-tough design especially in high-temperature environments that retains this strength and stability under extreme conditions, and provides it is ideal for industrial marine applications. The alloy resists pitting and crack corrosion, providing durability in high chloride environments. Also, it exhibits excellent weldability and formability, facilitating mass production. Its advanced mechanical properties and thermal resistance make it suitable for pressure molds and chemical processes, resulting in reliable operation and reduced maintenance over time.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316Ti Angles find their way into various industries that require corrosion resistance, heat stability, and mechanical strength. In the chemical and petrochemical fields, they are essential for reactors, piping systems, and process equipment that come into contact with corrosive substances. In marine settings, you’ll see them used in shipbuilding, offshore platforms, and seawater handling systems. Additionally, construction and architectural projects utilize these angles for structural frameworks, supports, and cladding, especially in harsh environments.
