Yunus Sheets and Plates is a top-notch manufacturer and supplier located in Istanbul, Turkey, known for its unwavering dedication to quality and precision in the stainless steel sector. They specialize in Stainless Steel 321 Angles, catering to a wide array of industrial fields with products that are both durable and resistant to corrosion. With a solid foundation in cutting-edge production methods and rigorous quality checks, Yunus Sheets and Plates provides dependable solutions tailored to meet various customer demands. Their Stainless Steel 321 Angles are particularly prized for their stability at high temperatures and outstanding resistance to intergranular corrosion, making them perfect for challenging applications.

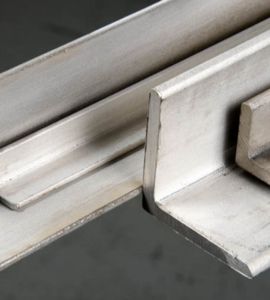

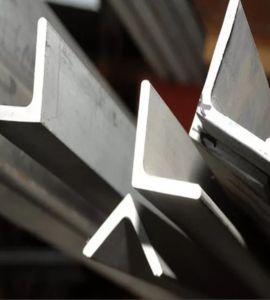

Stainless Steel 321 Angle is a titanium-stabilized austenitic stainless steel featuring a typical composition of Chromium (17–19%), Nickel (9–12%), Titanium (≥5xC%), along with trace amounts of Manganese, Silicon, and Carbon. This alloy boasts remarkable resistance to oxidation and intergranular corrosion. Its mechanical properties include a tensile strength of about 515 MPa, yield strength of 205 MPa, and an elongation of 40%. It retains its structural integrity at temperatures reaching up to 900°C, making it an excellent choice for high-temperature applications. These characteristics ensure long-lasting performance in both aggressive and thermal environments.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 321 Angles find extensive use in industries that demand exceptional resistance to heat and corrosion. They are commonly utilized in exhaust manifolds, aircraft engine components, furnace parts, heat exchangers, and chemical processing equipment. Their ability to withstand high temperatures makes them ideal for continuous operation in settings where other stainless steels might falter. The inclusion of titanium boosts resistance to carbide precipitation, making them perfect for welding tasks. In construction, 321 Angles are employed for structural applications, ensuring durability and reliability.
