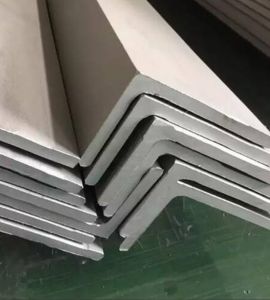

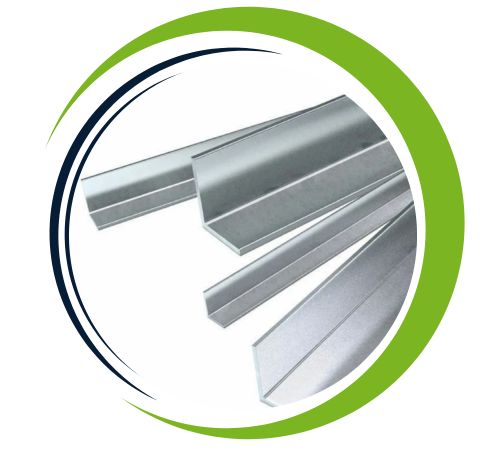

Yunus Sheets and Plates, located in Istanbul, Turkey, has built a solid reputation as a manufacturer and supplier of Stainless Steel 317L Angles, catering to a wide range of industrial needs with top-notch products. Committed to excellence, the company provides precision-engineered angles that adhere to international standards for durability and performance. Known for their impressive corrosion resistance, especially in chemical and marine settings, Stainless Steel 317L Angles are perfect for demanding applications. Yunus Sheets and Plates prides itself on strict quality control, competitive pricing, and timely delivery, making it a trusted partner for industries in search of reliable stainless steel solutions around the globe.
Stainless Steel 317L Angle is made up of iron, 18–20% chromium, 11–15% nickel, 3–4% molybdenum, and low carbon, which helps reduce carbide precipitation and boosts weldability. It boasts excellent mechanical properties, including high tensile strength, good yield strength, and superior creep resistance. With remarkable resistance to chemical attacks, pitting, and oxidation at high temperatures, it ensures durability even in tough conditions. The low carbon content enhances corrosion resistance in welded structures, making it a go-to choice for industries that need long-lasting performance and reliability in aggressive environments.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The stainless steel 317L angle provides excellent corrosion resistance, especially in aggressive environments with acids and chlorides, due to its high malybdenum content. It has excellent strength and stability, making it ideal for construction applications. The low carbon content reduces carbide precipitation during welding, resulting in stronger and longer lasting joints. The alloy provides excellent thermal and oxidation resistance, allowing it to be used at higher temperatures. Additionally, the 317L Angle is versatile, easy to manufacture, and requires little maintenance, making it cost-effective for the chemical, marine and industrial industries.
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
The stainless steel 317L angle is a low-carbon, corrosion-resistant material commonly used in harsh environments. Applications include applications in the chemical, pharmaceutical, and food industries, where resistance to chloride stress-induced cracking is important Applications in power plants, water treatment plants, and the marine environment. With excellent resistance to oxidation and high temperatures, it is ideal for structural support, frames and brackets in construction and manufacturing, providing durability and durability in harsh applications.
