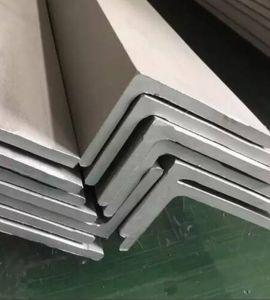

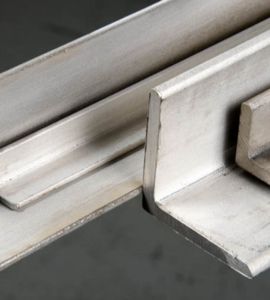

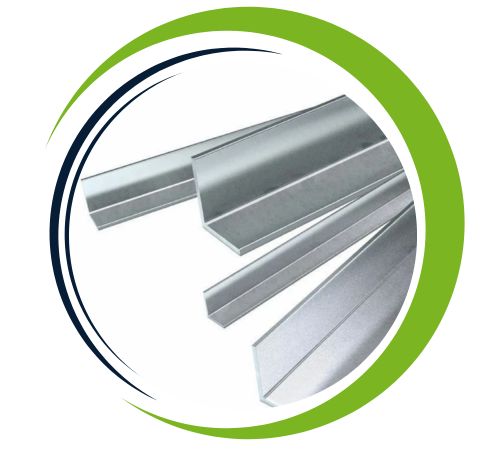

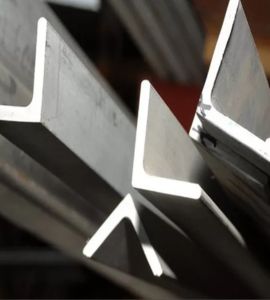

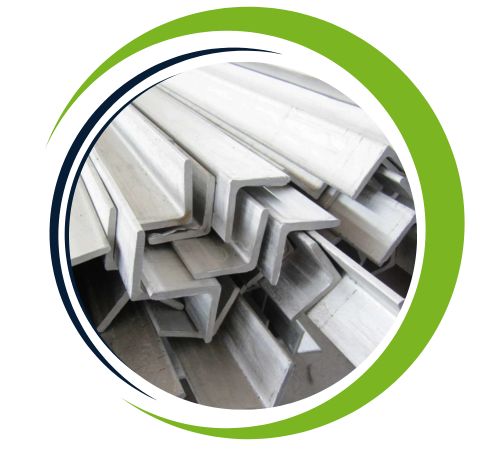

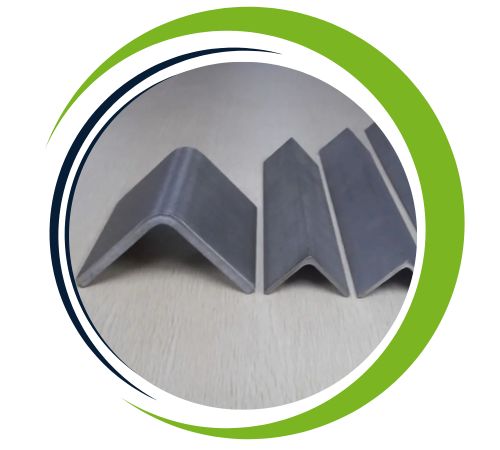

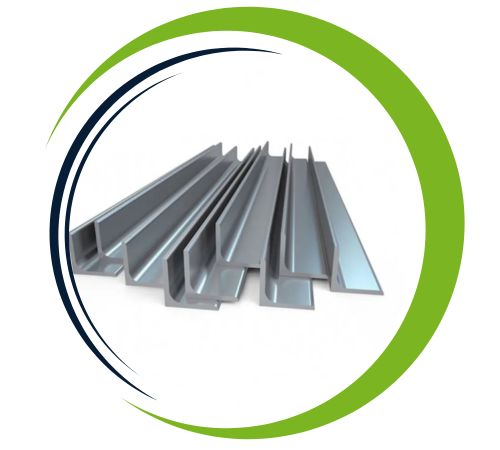

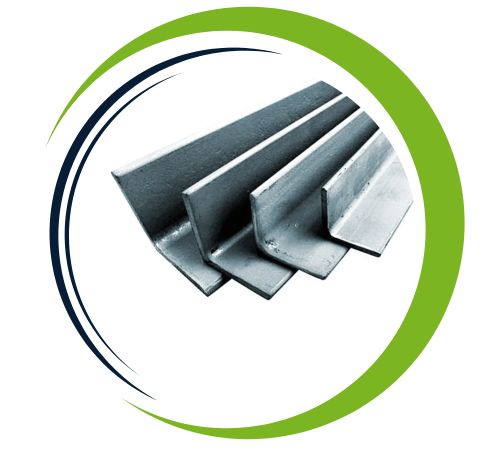

Stainless Steel 316L Angle is a highly versatile and durable structural product that’s built to provide outstanding strength and exceptional resistance to corrosion, even in the toughest environments. As a low-carbon variant of 316 stainless steel, it boasts improved resistance to intergranular corrosion after welding, making it a top choice for fabrication and structural projects. With impressive mechanical strength, toughness, and resistance to pitting and crevice corrosion in chloride-rich settings, Stainless Steel 316L Angles are incredibly reliable for both industrial and architectural applications. They’re well-regarded for their long lifespan, durability, and ability to thrive in demanding marine, chemical, and high-temperature conditions.
This material primarily consists of iron, chromium (16–18%), nickel (10–12%), molybdenum (2–3%), and has a low carbon content of less than 0.03%. The inclusion of molybdenum boosts its resistance to chlorides and harsh environments, while the reduced carbon content helps prevent carbide precipitation during welding. Its mechanical properties feature a tensile strength of around 485 MPa, a yield strength of 170 MPa, and excellent elongation, ensuring both toughness and flexibility. This grade also provides high creep and stress rupture strength, making it ideal for high-temperature applications while maintaining superior corrosion resistance and durability.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316L angle offers many advantages, including exceptional corrosion resistance, especially in chloride zones, making it ideal for marine and chemical applications Its low carbon content enhances its weldability and reduces risk of carbide precipitation. This material is very durable and maintains strength and performance at high temperatures. Stainless steel 316L is also non-magnetic and offers excellent formability, ensuring versatility in construction and construction applications. It is easy to maintain, offers long-term reliability and low maintenance costs, making it desirable for many businesses.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316L Angles find extensive use in industries where strength and corrosion resistance are paramount. In the marine industry, they’re utilized in shipbuilding, offshore structures, and seawater equipment due to their ability to resist chloride-induced corrosion. In the chemical and petrochemical sectors, they’re essential for process plants, tanks, and piping systems. Their applications in construction and architecture include support structures, frameworks, and decorative features. Additionally, the power generation and food processing industries benefit from their hygiene, durability, and stability at high temperatures. These qualities make 316L angles a reliable choice for both heavy-duty and demanding applications.
