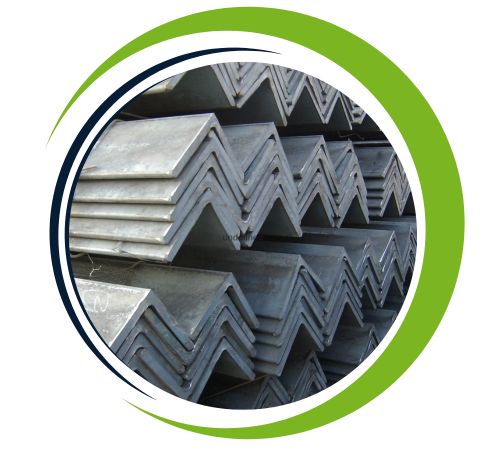

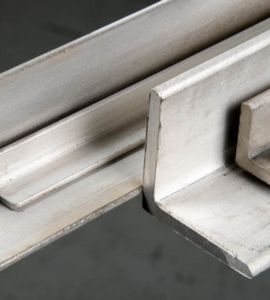

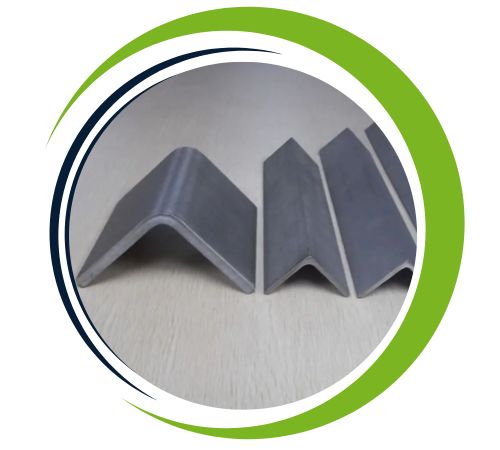

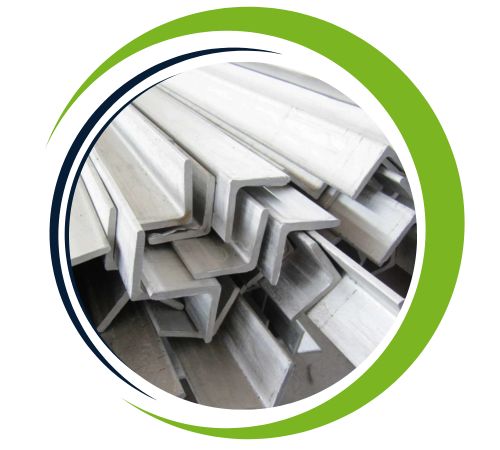

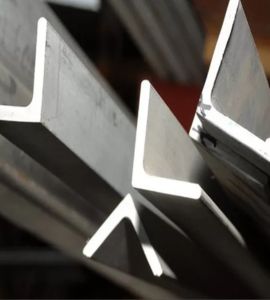

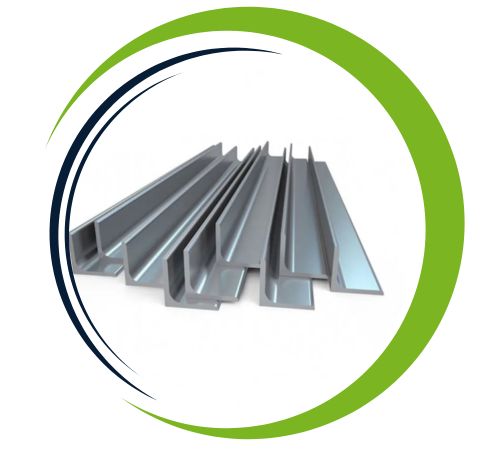

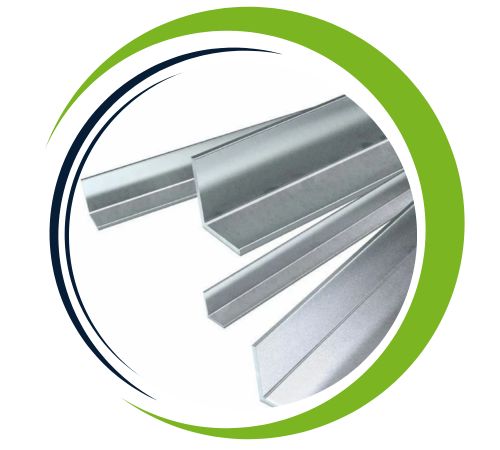

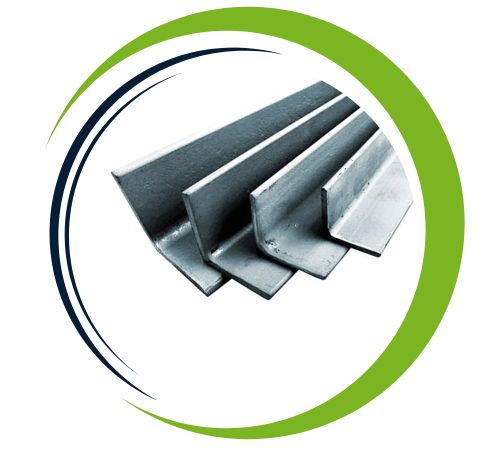

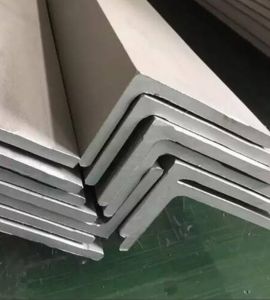

Yunus Sheets and Plates, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of Stainless Steel 304L Angles. These angles are celebrated for their remarkable corrosion resistance, durability, and versatility. The company employs cutting-edge manufacturing techniques and rigorous quality control to guarantee that each angle boasts precise dimensions, a smooth surface finish, and reliable mechanical performance. Stainless Steel 304L Angles find their place in various industries, including chemical processing, food and beverage, construction, marine, and pharmaceuticals. By delivering high-quality stainless steel solutions, Yunus Sheets and Plates plays a crucial role in applications that demand dependable, long-lasting materials capable of enduring harsh and corrosive conditions.
Stainless Steel 304L is a low-carbon austenitic stainless steel that contains 18–20% chromium and 8–12% nickel. The lower carbon content helps reduce the risk of sensitization during welding while still providing excellent corrosion resistance, toughness, and ductility. With a tensile strength of around 485 MPa, Stainless Steel 304L Angles are highly resistant to oxidation and corrosion across a variety of environments, including atmospheric and mildly acidic conditions.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 304L Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 304L angle offers several advantages, making it a popular choice for structural applications. It provides resistance to corrosion, especially in harsh environments such as the chemical industry, food and marine industries. The low carbon content increases its weldability, reducing the risk of sensing and carbide precipitation. The material provides high strength, durability and oxidation resistance, ensuring long-lasting performance. The stainless steel 304L is versatile, easy to manufacture, and maintains its appearance with minimal maintenance. The resistance to stress corrosion cracking further extends its life under extreme conditions.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
These angles are commonly used in structural frameworks, construction support systems, chemical processing equipment, and food and beverage machinery. They also find applications in marine settings, architectural components, and pharmaceutical equipment, thanks to their corrosion resistance and ease of fabrication. The blend of strength, durability, and weldability makes Stainless Steel 304L Angles a perfect choice for demanding industrial, structural, and fabrication needs.
