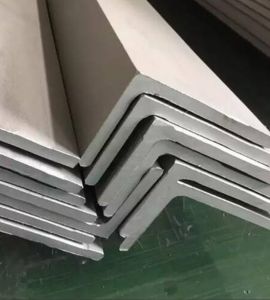

Yunus Sheets and Plates, located in Istanbul, Turkey, is a reputable manufacturer and supplier of Stainless Steel 301 Angle. They pride themselves on delivering products that blend strength, durability, and precision. With years of experience under their belt, the company provides top-notch stainless steel solutions designed to meet a wide range of industrial needs. Their Stainless Steel 301 Angles are particularly recognized for their corrosion resistance, excellent forming capabilities, and strong mechanical properties. Yunus Sheets and Plates maintains rigorous quality control and complies with international standards, making them a dependable partner for clients in construction, engineering, manufacturing, and other sectors where performance and reliability are crucial.
Stainless Steel 301 Angle is primarily made up of chromium and nickel, with chromium levels between 16–18% and nickel content around 6–8%. This grade also contains trace amounts of manganese, silicon, and carbon, which enhance its impressive strength and resistance to corrosion. Mechanically, it boasts a tensile strength of up to 1250 MPa and good elongation, offering both hardness and ductility. Its ability to work-harden means it can achieve greater strength during fabrication, making it ideal for demanding structural and industrial applications.
| Specifications | ASTM A276 / ASME SA276 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Angles Size | 20mm to 200mm |
| Angle Thickness | 3mm to 12mm |
| Angles Length | Upto 6 Meters Long |
| Angles Types | Equal, Unequal, L Angle, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Angle, Angle |
| ELEMENT | C | Mn | P | S | Si | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 301 | 0.150 max | 2.00 max | 0.045 max | 0.030 max | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | 0.10 |
| SS 301L | 0.03 max | 2.00 max | 0.045 max | 0.030 max | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | 0.02 |
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% ksi (min.) | Elongation -% in 50 mm (min.) |
|---|---|---|---|
| SS 301 | 185 | 140 | 9 |
| SS 301L | 550 | 220 | 45 |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
|---|---|---|---|
| SS 301 | 1.4310 | S30100 | SUS 301 |
| SS 301L | – | S30103 | SUS 301L |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 301 Angle is widely used in industries where strength, durability, and corrosion resistance are essential. It’s commonly found in architectural structures, frameworks, and reinforcements for construction projects. In the transportation industry, it’s utilized in railway cars, truck trailers, and automotive trims thanks to its high strength-to-weight ratio. Moreover, it’s employed in industrial equipment, conveyors, and marine hardware, proving its capability to endure harsh environments. Its excellent forming and welding characteristics make it perfect for creating durable components across various manufacturing and engineering sectors.
Stainless steel 301 Angle provides excellent corrosion resistance, especially in bright environments, making it suitable for outdoor marine applications. It has consistency and can easily be shaped. The alloy provides high tensile strength and moderate hardness, ensuring durability and structural integrity. It also exhibits excellent fatigue resistance and easily cracks under stress, making it ideal for use in the industrial and construction industries In addition to stainless steel 301 Angle retains its properties in environments is extremely hot, providing versatility and reliability.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless steel 301 angle is a versatile material used in various industries due to its high strength, corrosion resistance and formability. It is commonly used in the construction, automotive and aerospace industries for building components such as brackets, frames, supports etc. Its ability to hold energy at elevated temperatures makes it suitable for applications in high-stress environments, including exhaust systems and mechanical construction .
