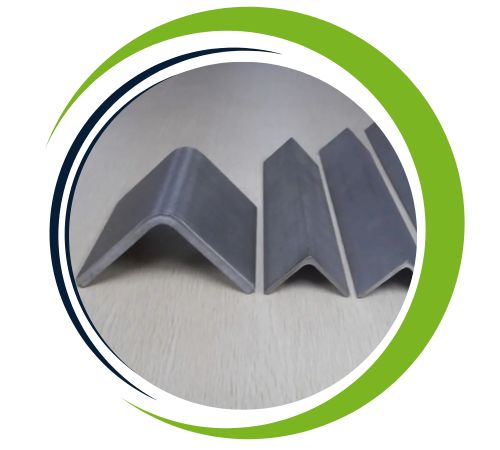

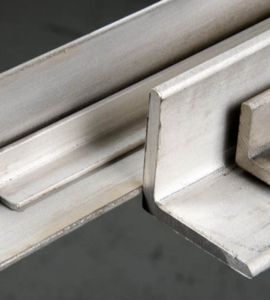

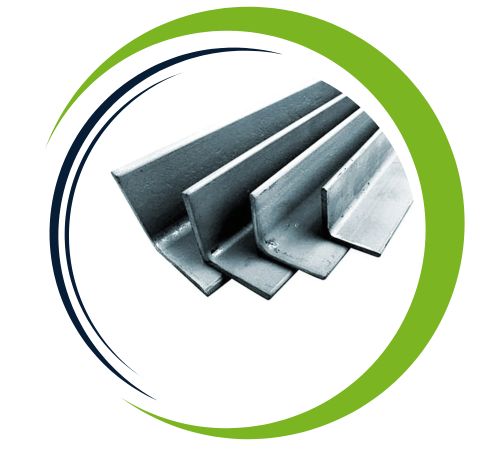

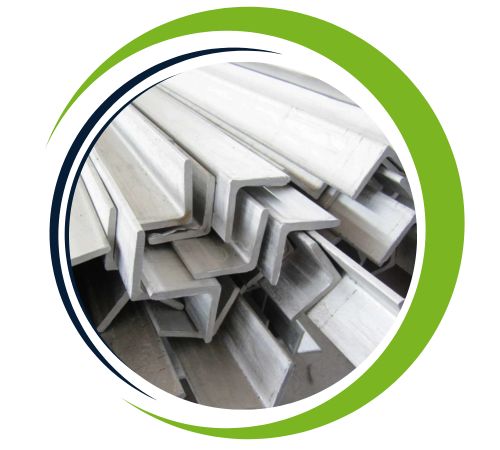

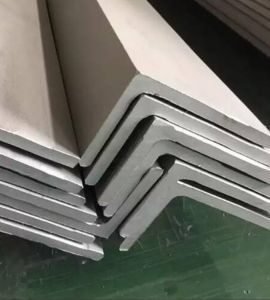

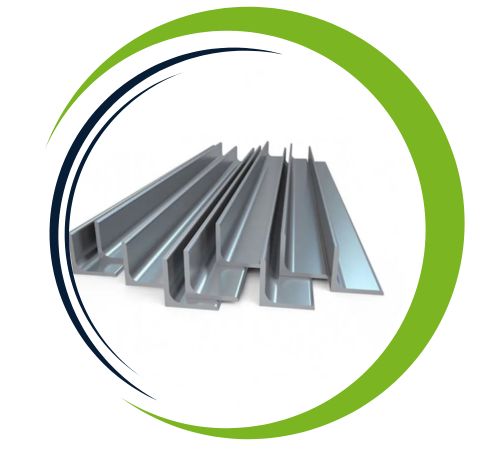

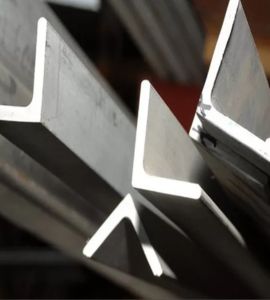

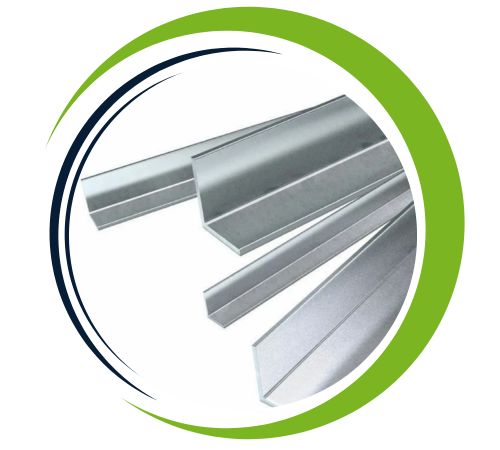

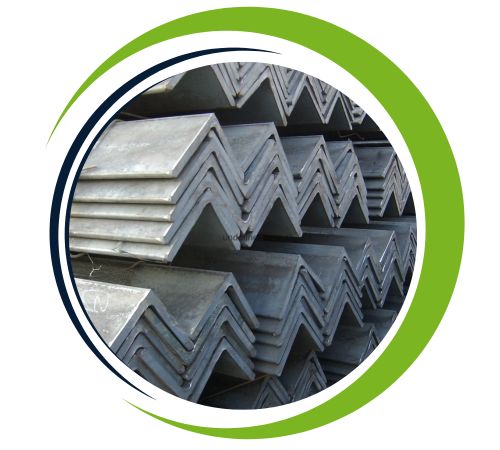

Stainless Steel 202 Angle is a highly adaptable austenitic stainless steel product that excels in resisting corrosion, offering strength, and providing formability for both industrial and architectural uses. With a higher manganese content and lower nickel levels compared to 304 stainless steel, 202 stainless steel presents a budget-friendly option without compromising on durability and reliability in mildly corrosive settings. These angles are crafted with precision, ensuring uniform dimensions, a smooth surface finish, and consistent quality, making them perfect for structural frameworks, support systems, and various fabrication projects. The combination of strength, ductility, and corrosion resistance in Stainless Steel 202 Angles makes them a great fit for construction, architecture, furniture, and light industrial applications.
The composition of Stainless Steel 202 Angle primarily includes iron, chromium (17–19%), nickel (4–6%), and manganese (7–9%), along with trace elements that enhance its mechanical properties and corrosion resistance. Its mechanical properties feature a tensile strength of about 515–690 MPa, yield strength around 205–310 MPa, and good elongation, which together provide toughness, flexibility, and reliability. Thanks to its austenitic microstructure, it boasts excellent formability, weldability, and resistance to general corrosion in both atmospheric and mildly corrosive environments. This unique blend of composition and mechanical traits makes 202 stainless steel angles perfect for both structural and decorative uses.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 202 angle offers many advantages, including excellent corrosion resistance, making it ideal for use in wet and chemical environments It has excellent strength and durability, and ensures performance reliability in construction applications. This alloy is cost-effective compared to higher grades like 304, while still providing high resistance to oxidation and turbidity. Stainless Steel 202 is highly versatile, easy to manufacture and maintain, and provides aesthetic appeal. It is commonly used in the construction, design and construction industry, providing a balance of energy and cost.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Stainless Steel 202 Angles find extensive application in industries that demand materials that are strong, corrosion-resistant, and cost-effective. In construction and architecture, they are utilized in frameworks, handrails, supports, and decorative elements. The furniture and interior design sectors incorporate them for fixtures, fittings, and structural components. In industrial settings, they serve as equipment supports, machinery frames, and in fabrication projects that are exposed to mildly corrosive conditions. Their remarkable formability, durability, and corrosion resistance ensure that Stainless Steel 202 Angles are a reliable choice for a wide range of applications.
