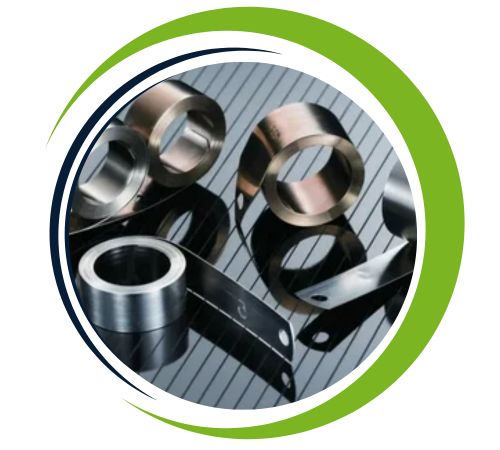

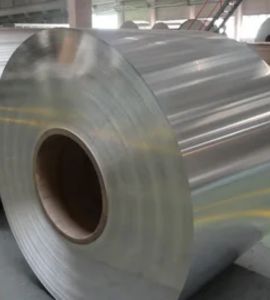

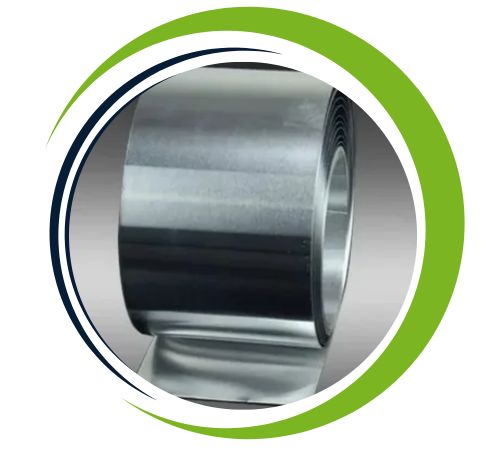

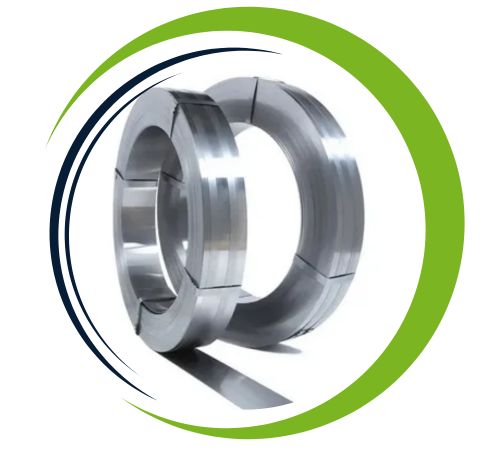

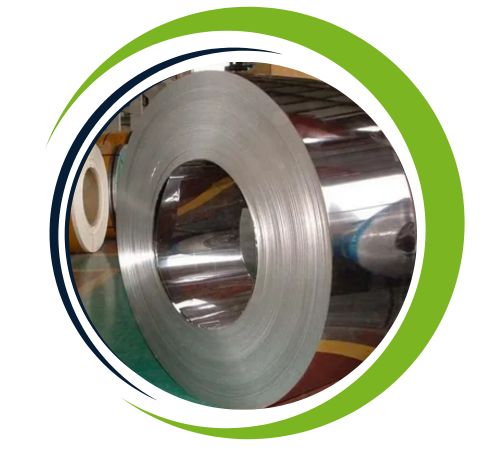

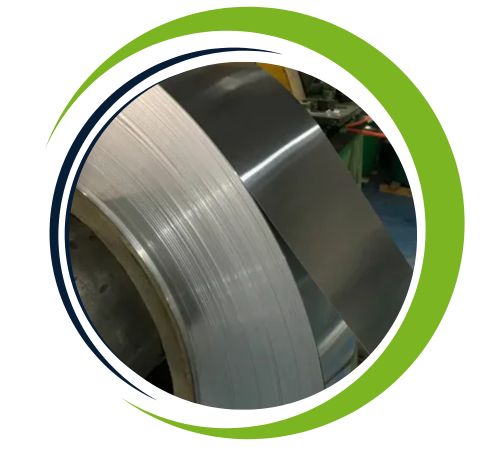

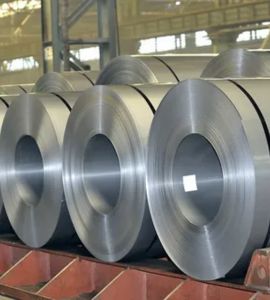

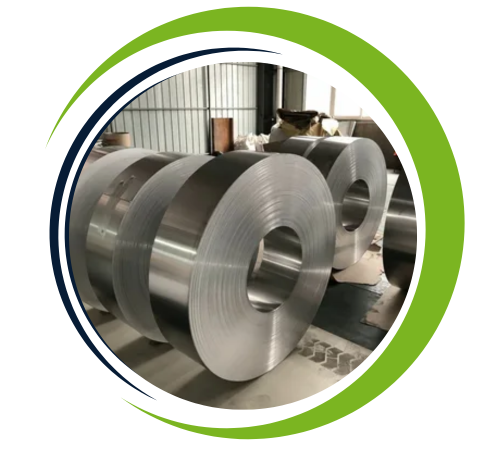

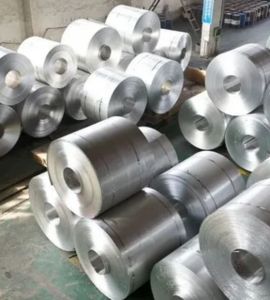

Yunus Sheets and Plates, located in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of Inconel 601 Foils. These foils are celebrated for their exceptional high-temperature strength, resistance to oxidation, and durability against corrosion. Thanks to cutting-edge technology and rigorous quality control, each foil is crafted with precise thickness, a smooth surface finish, and consistent mechanical properties. Inconel 601 Foils find their place in various industries, including aerospace, chemical processing, power generation, and industrial furnaces, where thin, high-performance materials are essential.
Inconel 601 is a nickel-chromium alloy that contains about 23% chromium and 1% aluminum, which gives it remarkable resistance to oxidation and carburization, even at high temperatures. It boasts impressive tensile strength of around 620 MPa, along with excellent creep resistance and toughness, making it perfect for applications that endure prolonged exposure to high heat.
| Standards | ASTM B168 / ASME SB168 |
| Thickness | 0.3 – 10.0mm & AS PER CUSTOMER’S REQUIREMENT |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm & AS PER CUSTOMER’S REQUIREMENT. |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm & AS PER CUSTOMER’S REQUIREMENT. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard AS PER CUSTOMER’S REQUIREMENT. |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled (HR), Cold rolled (CR), SATIN (Met with Plastic Coated) etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015max | 1.00 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 601 foils offer several advantages, making them ideal for high-temperature and high-stress applications. They exhibit outstanding oxidation and carburization resistance, ensuring durability in extreme environments. The alloy’s excellent resistance to thermal creep and high tensile strength make it reliable in aerospace, chemical, and industrial applications. Inconel 601 also provides superior weldability, maintaining strength and stability even after fabrication. Its ability to retain mechanical properties at elevated temperatures enhances performance, while its resistance to sulfur compounds further extends its lifespan in harsh, corrosive environments, reducing maintenance costs and downtime.
Yes, we offer custom sizes for Inconel 601 Foils to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Thickness | Foil Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
These foils are commonly utilized in heat exchangers, furnace components, chemical processing equipment, aerospace parts, and industrial machinery that demand thin, robust, and corrosion-resistant materials. The unique blend of mechanical strength, oxidation resistance, and flexibility makes Inconel 601 Foils a top choice for critical industrial, structural, and high-temperature applications.
