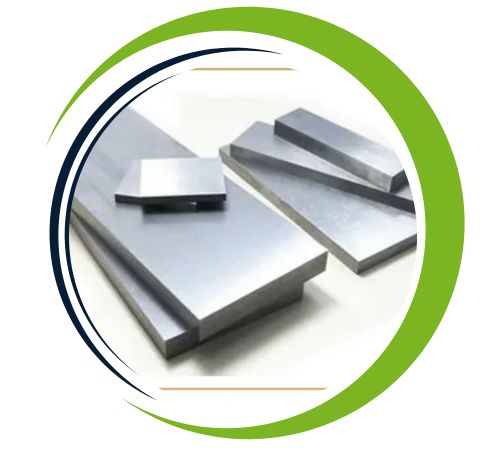

Yunus Sheets and Plates, located in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of Zirconium Sheets and Plates. They’re known for consistently delivering top-notch products that meet international standards. Thanks to their precision engineering and state-of-the-art production facilities, the company provides zirconium materials that boast exceptional strength, corrosion resistance, and durability. These sheets and plates find their way into industries that require dependable performance even in the toughest conditions. Yunus Sheets and Plates is dedicated to offering cost-effective solutions with prompt delivery, serving the needs of the chemical, nuclear, marine, and aerospace sectors while upholding rigorous quality assurance practices.
Zirconium Sheets and Plates mainly consist of zirconium, along with small amounts of hafnium, iron, oxygen, and tin, depending on the specific grade. This material is renowned for its remarkable corrosion resistance, particularly in acidic and alkaline environments. On the mechanical side, zirconium showcases a tensile strength ranging from about 330 to 680 MPa, along with good ductility and hardness that contribute to its toughness and formability. Its low thermal neutron absorption makes it a perfect fit for nuclear applications. With a high melting point, excellent fatigue resistance, and outstanding biocompatibility, zirconium sheets and plates excel in critical environments.
| Standard Specification : | ASTM B551 / ASME SB551 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Zirconium and Zirconium Alloys Chemical Composition | |||||||||
| Products | Chemical Composition (wt%≤) | ||||||||
| Sn | Fe | Ni | Cr | Fe+Cr | Fe+Ni+Cr | Nb | Al | B | |
| R60001 Nuclear Grade Pure Zirconium (Zr-0) | 0.005 | 0.15 | 0.0070 | 0.02 | – | – | – | 0.0075 | 0.0005 |
| R60802 (Zr-2) | 1.20-1.70 | 0.07-0.20 | 0.03-0.08 | 0.05-0.15 | – | 0.18-0.38 | – | 0.0075 | 0.0005 |
| R60804 (Zr-4) | 1.20-1.70 | 0.18-0.24 | 0.0070 | 0.07-0.13 | 0.28-0.37 | – | – | 0.0075 | 0.0005 |
| R60901 (Zr-2.5Nb) | 0.0050 | 0.150 | 0.0070 | 0.02 | – | – | 2.4-2.8 | 0.0075 | 0.0005 |
| R60904 (Zr-2.5Nb) | 0.010 | 0.065 | 0.0035 | 0.01 | – | – | 2.5-2.8 | 0.0075 | 0.0005 |
| Zirconium and Zirconium Alloys Sheet & Plate Mechanical Properties | |||||
| Grades | |||||
| Products | R60700 | R60702 | R60704 | R60705 | R60706 |
| Tensile strength, min, ksi (MPa) | – | 55 (380) | 60 (415) | 80 (550) | 74 (510) |
| Yield strength, min, ksi (MPa) | – | 30 (205) | 35 (240) | 55 (380) | 50 (345) |
| Tensile strength, max, ksi (MPa) | 55 (380) | – | – | – | – |
| Yield strength, max, ksi (MPa) Sheet, Plate and Strip | 44 (305) | – | – | – | – |
| Elongation in 2 in. or 50 mm, min, % | 20 | 16 | 14 | 16 | 14 |
| Bend test radius | 5T | 5T | 5T | 3T | 2.5T |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Zirconium sheets and plates offer several advantages, including exceptional corrosion resistance, especially in harsh environments like acids, seawater, and high-temperature conditions. They possess excellent strength, toughness, and high melting points, making them ideal for demanding applications in aerospace, nuclear, and chemical industries. Zirconium is also biocompatible, making it suitable for medical and dental uses. Additionally, its low thermal expansion and superior fatigue resistance enhance its performance in critical applications. The material’s durability, combined with excellent weldability and formability, ensures long-lasting, reliable performance in various industrial sectors.
Yes, we offer custom sizes for Zirconium Sheets and Plates to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
These Zirconium Sheets and Plates are widely utilized in demanding industries due to their exceptional properties. In the nuclear sector, they serve as cladding for fuel rods, thanks to their low neutron absorption. The chemical processing industry relies on zirconium sheets for reactors, vessels, and heat exchangers, where resistance to acids and alkalis is essential. In marine settings, they stand up to the corrosive effects of seawater. The medical field uses zirconium for surgical instruments and implants because of its biocompatibility. Additionally, the aerospace and defense industries depend on these sheets and plates for components that require strength, stability, and resistance under extreme conditions.
