**Yunus Sheets and Plates**, based in Istanbul, Turkey, is a reliable supplier of top-notch **Titanium Grade 5 Angle** products, known for their exceptional strength-to-weight ratio and resistance to corrosion. With a reputation for precision and dependability, Yunus caters to vital industries like aerospace, marine, medical, and chemical processing. Titanium Grade 5, or Ti-6Al-4V, stands out as the most popular titanium alloy thanks to its remarkable mechanical properties. Yunus offers titanium angles in tailored sizes and specifications, all produced under rigorous quality standards. With quick delivery and knowledgeable technical support, Yunus Sheets and Plates has become a go-to partner for high-performance titanium solutions.
**Titanium Grade 5 Angle** consists of roughly 90% titanium, 6% aluminum, and 4% vanadium, resulting in a distinctive blend of strength, lightweight design, and corrosion resistance. This alloy boasts a tensile strength of about 895 MPa and impressive fatigue resistance, while also being easy to weld and form. With a density of around 4.43 g/cm³, it’s significantly lighter than steel. Grade 5 can withstand elevated temperatures up to 400°C and maintains excellent biocompatibility, making it suitable for both structural and medical uses. It complies with ASTM B348 and other international standards.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More

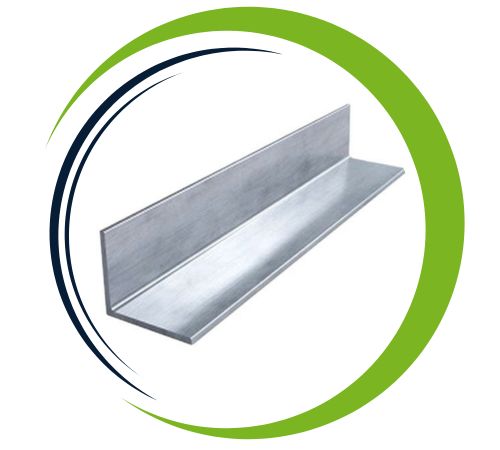

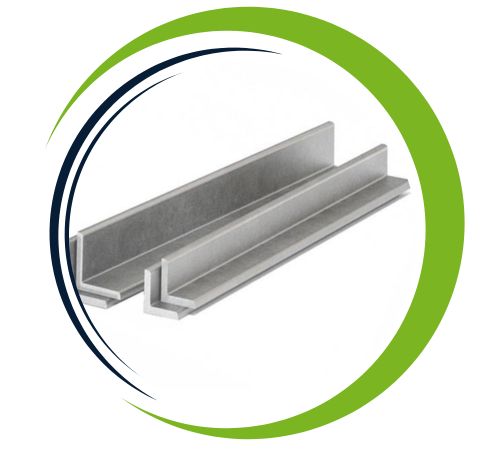

Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
| Element | C | V | N | Al | Ti | Fe | O |
| Titanium Gr.5 | – | 4 min | – | 6 min | 90 min | 0.25 max | 0.2 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
**Titanium Grade 5 Angle** finds its place in a broad range of demanding applications. In the aerospace sector, it’s frequently utilized for structural frames, brackets, and engine components due to its strength and lightweight nature. In marine settings, it stands up to saltwater corrosion, making it perfect for offshore structures and shipbuilding. In the medical arena, it’s employed for orthopedic implants and surgical instruments. Moreover, chemical processing facilities rely on it for various applications, ensuring durability and performance in challenging environments.
Titanium Grade 5 (Ti-6Al-4V) Angle offers numerous advantages, including exceptional strength, light weight, and excellent corrosion resistance, making it ideal for challenging environments. It is highly resistant to oxidation, ensuring longevity even in harsh conditions like high temperatures and marine environments. Titanium Gr 5 Angle also provides superior fatigue resistance and can withstand extreme stress without deformation. Its biocompatibility makes it suitable for medical applications, while its formability allows for diverse structural uses. These properties make it a preferred choice in aerospace, automotive, and industrial applications.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Angle Bar (kilogram/meter) | Titanium Gr 5 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Ti Alloy Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Grade 5 Angle to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 5 (Ti-6Al-4V) Angle is widely used across various industries due to its high strength, corrosion resistance, and lightweight properties. Common applications include aerospace components such as aircraft frames, turbine blades, and engine parts. It is also used in the medical field for implants, prosthetics, and surgical instruments, owing to its biocompatibility. Additionally, Titanium Gr 5 Angle is utilized in marine environments, automotive parts, and chemical processing equipment, where durability and resistance to harsh conditions are essential. Its versatility makes it ideal for demanding structural and engineering applications.
