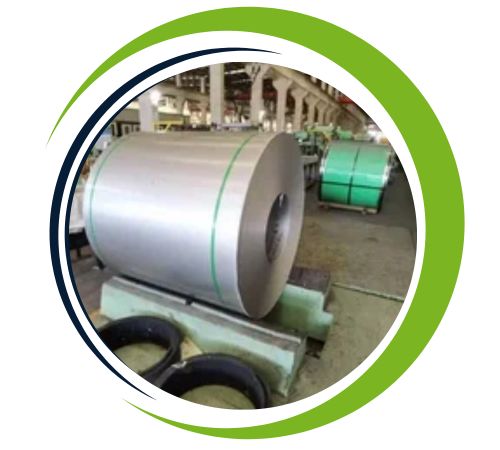

Yunus Sheets and Plates, based in Istanbul, Turkey, is a reliable manufacturer and supplier of Stainless Steel 316L Foils. They pride themselves on delivering top-notch stainless steel products that are built to last, showcasing impressive durability, strength, and outstanding resistance to corrosion. Known for their precision in manufacturing and commitment to international standards, the company offers foils that stand up to even the toughest chemical and marine environments. Stainless Steel 316L Foils are particularly appreciated for their exceptional resistance to pitting, crevice corrosion, and general chemical attacks. With state-of-the-art production facilities and rigorous quality control measures, Yunus Sheets and Plates guarantees long-lasting, high-performance foils that are perfect for chemical, petrochemical, marine, and industrial applications around the globe.
These foils are made from an austenitic stainless steel alloy, primarily consisting of iron, chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and a very low carbon content, along with trace amounts of manganese, silicon, phosphorus, and sulfur. The low carbon content helps minimize sensitization during welding, while the molybdenum boosts resistance to pitting and crevice corrosion. On the mechanical side, these foils deliver high tensile and yield strength, excellent toughness, and good ductility. Stainless Steel 316L Foils maintain their shape, mechanical integrity, and long-term durability even in corrosive and high-stress situations, making them ideal for structural and industrial uses in challenging environments.
| Item | Stainless Steel 316l foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 316l foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe | |
| SS 316L | 0.035 max | 2.00 max | 1.00 max | 0.045 max | 1.0 max | 16.00-18.00 | 2.0 -3.0 | 10.0 – 14.0 | 68.89 min |
| Properties | Metric | Imperial | |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi | |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi | |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi | |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi | |
| Compressive yield strength | 365 MPa | 52900 psi | |
| Elastic modulus | 197 GPa | 28573 ksi | |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 | |
| Elongation at break (longitudinal at room temperature) | 56% | 56% | |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% | |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 | |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Stainless Steel 316L Foils offer numerous advantages, including exceptional corrosion resistance, especially in harsh environments such as marine and chemical applications. They are highly resistant to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for use in aggressive conditions. The low carbon content enhances weldability, reducing carbide precipitation during welding. 316L foils exhibit excellent strength, durability, and formability, making them suitable for precision applications. Additionally, they are biocompatible, making them ideal for medical and food processing industries, ensuring long-term performance and reliability.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 316l | 1.4404 | S31603 | SUS 316l | Z7CND17‐11‐02 | 316S11/316S13 | – | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
You’ll find Stainless Steel 316L Foils in various industries that require top-notch corrosion resistance and mechanical performance. In the chemical and petrochemical fields, they’re used for process equipment, reactors, and heat exchangers that come into contact with corrosive substances. In marine settings, they’re essential for seawater handling systems, shipbuilding, and offshore platforms. Construction projects also utilize them for structural frameworks, cladding, and supports in harsh conditions. Plus, they find applications in the pharmaceutical and food processing industries, where reliability is key.
