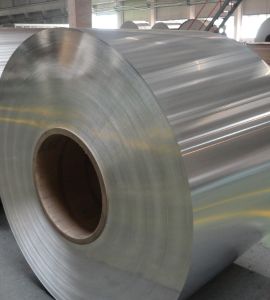

Stainless Steel 316 Foils are expertly crafted, ultra-thin sheets of stainless steel that shine in applications where corrosion resistance, durability, and flexibility are a must. Made from top-notch 316 austenitic stainless steel, these foils stand out with their impressive ability to resist pitting, crevice corrosion, and chemical damage, especially in harsh, chloride-rich environments. Their thin profile and remarkable formability make them perfect for detailed fabrication, gasket materials, heat exchangers, and a variety of industrial or architectural uses. With a blend of strength, reliability, and long-lasting performance, Stainless Steel 316 Foils are a go-to choice for industries like marine, chemical processing, pharmaceuticals, and food processing, where hygiene and corrosion resistance are absolutely essential.
These foils are made up of iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which boosts their resistance to corrosion and chemical attacks. Thanks to their austenitic microstructure, they boast excellent mechanical properties, including a tensile strength of around 515–720 MPa and a yield strength of 205 MPa, along with good elongation and ductility. The low carbon content ensures stability during welding and forming, while the molybdenum addition enhances performance in aggressive chemical environments rich in chloride. Even in tough conditions, these foils maintain their structural integrity, providing both flexibility and strength for precision applications.
| Item | Stainless Steel 316 foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |

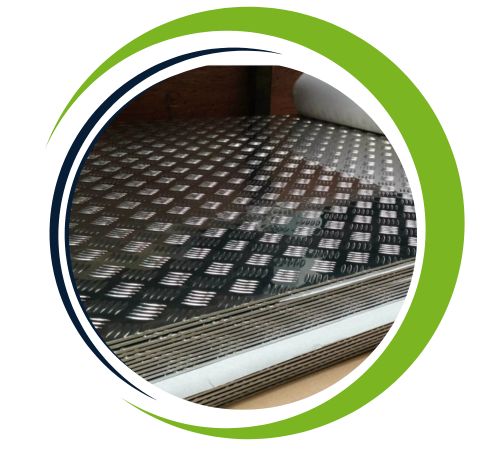

| Surface | the surface and finish of stainless steel 316 foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
|
316 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.03 max |
16.00-18.00 |
2.00 – 3.00 |
11.00 – 14.00 |
67.845 min |
| Properties | Metric | Imperial | |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi | |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi | |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi | |
| Yield strength (longitudinal at room temperature) | 316 MPa | 43700 psi | |
| Compressive yield strength | 365 MPa | 52900 psi | |
| Elastic modulus | 197 GPa | 28573 ksi | |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 | |
| Elongation at break (longitudinal at room temperature) | 56% | 56% | |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% | |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 | |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Stainless Steel 316 foils offer excellent corrosion resistance, especially against chlorides and other harsh chemicals, making them ideal for marine, chemical, and food processing industries. They are highly durable, with superior strength and resistance to pitting and crevice corrosion. These foils maintain integrity even in extreme temperatures, offering excellent thermal stability. Their excellent weldability and formability make them easy to process into various shapes. Stainless Steel 316 foils are non-magnetic and provide long-term reliability, making them suitable for various industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 316 | 1.4401 | S31600 | SUS 316 | Z7CND17‐11‐02 | 316S31 / 316S33 | – | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316 Foils find their place in various industries that demand thin, corrosion-resistant materials with high durability. They’re commonly used in chemical processing equipment, heat exchangers, and gaskets. In the food and pharmaceutical sectors, they serve hygienic surfaces, packaging, and processing equipment. For marine applications, they act as protective layers and structural components exposed to seawater. In architecture, they’re utilized for decorative elements and protective laminates. Their unique combination of corrosion resistance, formability, and strength makes them an invaluable asset across multiple fields.
