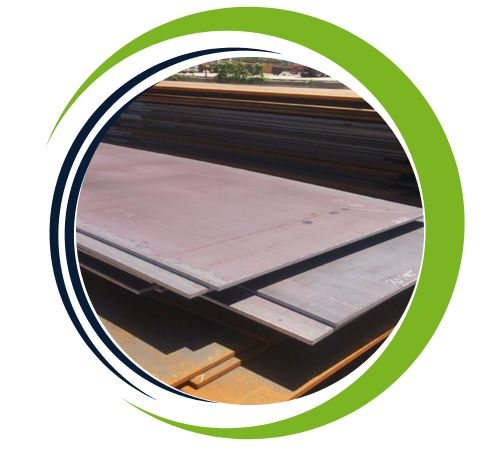

Shipbuilding Steel Sheet and Plate

Yunus Sheets and Plates, located in Istanbul, Turkey, stands out as a trusted manufacturer and supplier of top-notch Shipbuilding Steel Sheets and Plates, crafted to meet the rigorous demands of the marine and offshore sectors. With a strong commitment to quality, compliance, and timely delivery, Yunus ensures that their steel products meet international standards like ABS, Lloyd’s Register, DNV, and more. Their shipbuilding-grade steel plates are celebrated for their remarkable strength, weldability, and resistance to corrosion. Catering to both local and international shipbuilders, Yunus Sheets and Plates offers durable, cost-effective, and technically sound solutions for a variety of marine applications.

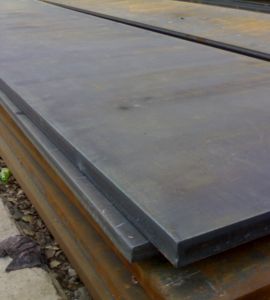

LR Shipbuilding Steel Plate

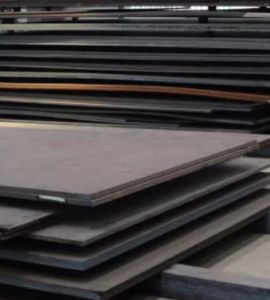

Grade A Shipbuilding Steel Plate

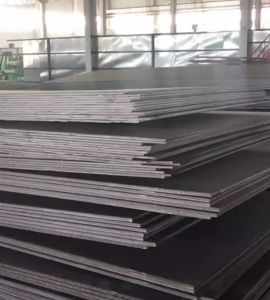

Ship Steel Sheet

Hot Rolled Shipbuilding 12mm Carbon Plate Manufacturer in West Istanbul, Shipbuilding Sheet Ah40 Marine Grade Steel Plate Bodrum, Hot Rolled EH36 Shipbuilding Steel Sheet Supplier in Istanbul, 12mm Black Surface Iron Ship Steel Sheet Exporter in Bursa, Shipbuilding Steel Plate EH36 Price List in Turkey, ASTM A131 Shipbuilding Steel Plate Distributor in Bodrum, LR Shipbuilding Steel Plate and Sheet Supplier in West Istanbul, HR Shipbuilding Carbon Plate Distributor in Turkey, DH36 High Strength Shipbuilding Steel Plates Sizes in mm

Shipbuilding Steel Sheets and Plates are crafted from specialized marine-grade steels such as AH36, DH36, or EH36, specifically designed for structural applications in shipbuilding. The typical composition includes carbon (≤0.21%), manganese (up to 1.6%), along with silicon, phosphorus, sulfur, and trace elements like copper or nickel to enhance corrosion resistance. These materials boast impressive mechanical properties, featuring high yield strength (355–490 MPa) and tensile strength (490–620 MPa), along with excellent notch toughness and ductility. To ensure superior structural integrity, these plates undergo controlled rolling or thermo-mechanical processing. Their weldability and durability make them perfect for the challenging conditions of marine environments and heavy-duty fabrication tasks.

Shipbuilding Steel Sheet and Plate Specification

Weight	Up to 40 ton
Width	1500-4000
Thickness	4-200 mm
grades	EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents
Length	Up to 20000
Delivery condition	quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled

Chemical Composition of Ship Steel Plate

Grade	C%≤	Al %	Mn %	p % ≤	S % ≤	Si %	Nb %	V %
D32 A32 E32	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	—	—
A	0.22	—	≥ 2.5C	0.04	0.40	0.10~0.35	—	—
B	0.21	—	0.60~1.00	0.04	0.40	0.10~0.35	—	—
E	0.18	≥0.015	0.70~1.20	0.04	0.04	0.10~0.35	—
D36 A36 E36	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	0.015~0.050	0.030~0.10
D	0.21	≥0.015	0.60~1.00	0.04	0.04	0.10~0.35	—	—

Shipbuilding Steel Plate Mechanical Properties

Grade	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation （%）≥	cold bend test		Thickness (mm)	V-impact test
				b=5a 120°	b=2a 180°		Temperature （℃）	Average AKV A kv /J
								lengthways	crosswise
								≥
A	235	400~490	22	—	d=2a	≤50 mm	—	—	—
B				d=3a	—		0	27	20
D							-10
E							-40
A32	315	440~590	22	d=3a	—	≤50 mm	0	31	22
D32							-20
E32							-40
A36	355	490~620	21	d=3a	—	≤50 mm	0	34	24
D36							-20
E36							-40

Ship Steel Plate Price in Antalya, LR Shipbuilding Steel Plate Weight Chart, Shipyard Steel Plate Supplier in Turkey, Stockist of Hot Rolled Steel Plate A36 in Bursa, Ship Steel Sheet Supplier in Turkey, Cut Length AH36 Ship Steel Plate Price List in Istanbul, Grade A Shipbuilding Steel Plate Supplier in Bursa, ASTM AH36 High Strength Shipbuilding Steel Plate Exporter in West Istanbul, ASTM A131 Grade AH36 Shipbuilding Steel Sheets and Plates Exporter in Turkey, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates in Antalya

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Shipbuilding Steel Sheet and Plate Manufacturer and Exporter in Istanbul, Turkey

Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Ship Steel Plate Size Range

size(mm)						CSA (cm2)	weight (kg/m)
	h	t	r1	b	r	CSA (cm2)	weight (kg/m)
	19	5	4	80	≤1.5	5.41	4.25
	20	6	4	80	≤2	6.21	4.88
	22.5	7	4.5	100	≤2	8.74	6.86
	23.5	8	4.5	100	≤2	9.74	7.65
	23	6	5	120	≤2	9.32	7.32
	24	7				10.52	8.26
	25	8				11.72	9.2
	26	7	5.5	140	≤2	12.43	9.75
	27	8			≤2	13.83	10.85
	29	10			≤3	16.63	13.05
	29	7	6	160	≤2	14.6	11.46
	30	8				16.2	12.72
	31	9				17.8	13.97
	33	11			≤3	21	16.49
	33	8	7	180	≤2	18.86	14.8
	34	9			≤2	20.66	16.22
	35	10			≤3	22.46	17.63
	36	11			≤3	24.26	19.04
	37	9	8	200	≤2	23.66	18.57
	38	10			≤3	25.66	20.14
	39	11				27.66	21.71
	40	12				29.66	23.28
	41	10	9	220	≤3	29.66	22.27
	42	11				29	24.5
	43	12				31.2	26.22
	40	10	10	240	≤3	33.49	25.5
	45	11				34.89	27.39
	46	12				37.29	29.27
	47	10	11	260	≤3	36.11	28.35
	48	11				38.71	30.39
	49	12				41.31	32.43
	51	11	12	280	≤3	42.68	33.5
	52	12				45.48	35.7
	53	13				48.28	37.9
	54	11	13	300	≤3	46.78	36.7
	55	12				49.79	39.09
	56	13				52.79	41.44
	58	12	14	320	≤3	54.25	42.6
	59	13			≤3	57.25	45.09
	60	14			≤4	60.85	47.6
	61	12	15	340	≤3	58.84	46.2
	62	13			≤3	62.24	48.86
	63	14			≤4	65.54	51.5
	66.5	13	16.5	370	≤3	69.7	54.7
	67.5	14			≤4	73.4	57.6
	68.5	15			≤4	77.1	60.5
	72	14	18	400	≤4	81.48	63.96
	73	15				85.48	67.1
	74	16				89.48	70.2
	76.5	14	19.5	430	≤4	89.7	70.6
	77.5	15				94.19	73.9
	79.5	17				102.79	80.7
	81.5	19				111.39	87.4
	82.5	20				115	90.8

Shipbuilding Plate AH36 Dimensional Deviation

nominal thickness（mm）	minus deviation (mm)	The thickness deviation with following width (mm)
nominal thickness（mm）	minus deviation (mm)	> 1500 ~1700	> 1200 ~1500	> 1700 ~1800	> 1000 ~1200	> 1800 ~2000	> 2000 ~2300	> 2300 ~2500	> 2500 ~2600	2600 ~2800	> 2800 ~3000
>12~25 mm	-0.8 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.8	+1.0	+1.1	+1.2
>25~30 mm	-0.9 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.1	+1.2
>30~34 mm	-1.0 mm	+0.3 mm	+0.3 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.2	+1.3
>34~40 mm	-1.1 mm	+0.5 mm	+0.4 mm	+0.6 mm	+0.3 mm	+0.7 mm	+0.9 mm	+1.0	+1.1	+1.3	+1.4
>40~45 mm	-1.2 mm	+0.6 mm	+0.5 mm	+0.7 mm	+0.4 mm	+0.8 mm	+1.0 mm	+1.1	+1.2	+1.4	+1.

Marine Metal Sheet Grade a AH36 Shipbuilding Steel Plates Distributor in Turkey, LR Shipbuilding Steel Plate Supplier in Istanbul, 8mm Thickness Hot Rolled Steel Plates for Shipbuilding, CCS LR Grade A Steel Plates Weight Chart, Low DH36 High Strength Shipbuilding Steel Sheet Exporter in Bursa, Shipbuilding Steel Plate Manufacturer in West Istanbul, FH36 Grade A Marine Shipbuilding Steel Plates Sizes in mm, Hot Rolled Steel A36 Sheets and Plates Antalya

Shipbuilding Steel Sheet and Plate provide exceptional strength and durability, which is critical to withstanding the harsh elements of the sea. They improve corrosion resistance, extend the life of the container, and reduce maintenance costs. These materials are extremely versatile, contributing to the hull, deck and other important features. With excellent weldability and structural integrity, safety and reliability are ensured under extreme conditions. Additionally, steel plate ships are available in a variety of styles, meeting design and performance requirements. Their low cost and compliance with stringent industry standards makes them indispensable in modern shipbuilding.

Types of Shipbuilding Steel Sheet and Plate

DH40 Marine Grade Ship Steel Plates Dealer in West Istanbul, CCS LR Grade A Shipbuilding Steel Plates Supplier in West Istanbul, ASTM A131 Grade AH36 Shipbuilding Steel Sheet and Plates in Bodrum, DH36 Shipbuilding Steel Plates Size Chart, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates Price in Antalya, ASTM A131 High Strength Shipbuilding Steel Plate Stockist in Bursa, Ship Steel Plate Stockist in Istanbul, AH36 Steel Plate Supplier in Bursa

Are Custom Sizes Available for Shipbuilding Steel Sheet and Plate?

Yes, we offer custom sizes for Shipbuilding Steel Sheet and Plate to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Shipbuilding Steel Sheet and Plate

Shipbuilding Steel Sheets and Plates play a crucial role in constructing ships, offshore platforms, and various marine structures. These plates are integral to hull fabrication, decks, bulkheads, engine casings, and the superstructures of cargo ships, tankers, and naval vessels. Their exceptional strength and resistance to corrosion make them ideal for long-term use in saltwater conditions. Additionally, they find applications in ship repairs and port infrastructure, ensuring that marine operations run smoothly and efficiently.
