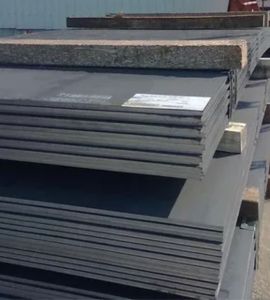

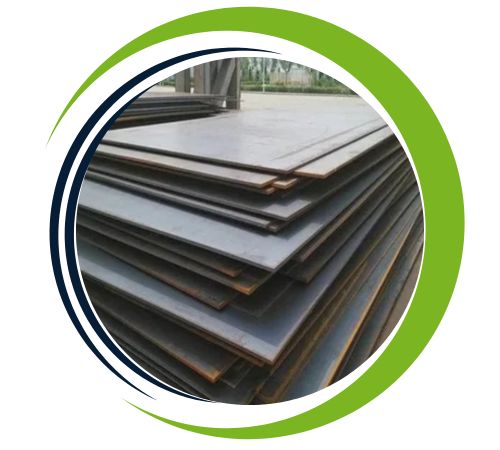

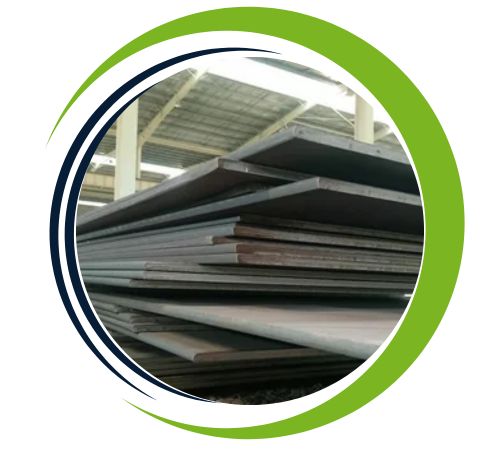

Yunus Sheets and Plates, located in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of SA516 Grade 60 Boiler Sheet and Plate. They pride themselves on delivering top-notch products that adhere to international standards. Thanks to their cutting-edge production technology and rigorous quality control measures, Yunus guarantees sheets and plates that boast impressive strength, toughness, and dependability, even in high-pressure and high-temperature situations. The SA516 Grade 60 Boiler Sheet and Plate is a go-to choice for constructing boilers, pressure vessels, and heat exchangers. By consistently providing trustworthy products, prompt delivery, and competitive pricing, Yunus has established a strong presence in both domestic and international markets.
SA516 Grade 60 Boiler Sheet and Plate is a robust carbon steel material specifically designed for pressure-containing applications at elevated temperatures. It typically contains around 0.27% carbon, 0.30–0.60% manganese, along with small amounts of phosphorus, sulfur, and silicon to boost its strength and toughness. In terms of mechanical properties, it offers a tensile strength ranging from 415 to 550 MPa, a minimum yield strength of 205 MPa, an elongation of 22%, and outstanding notch toughness at lower temperatures. These characteristics make it ideal for welding, forming, and fabricating in boilers, pressure vessels, and heat exchangers.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Grade 60 boiler sheet and plate offer excellent strength and durability, making them ideal for pressure vessel and boiler applications. Known for their resistance to cracking, they are highly effective in high-temperature and high-pressure environments. The steel’s weldability and ease of fabrication further enhance its versatility. Its ability to withstand moderate to high stress levels without compromising performance makes it suitable for power generation and chemical industries. SA516 Grade 60 also offers good toughness, making it reliable for long-term use in demanding applications.
This high-strength carbon steel is widely utilized in industries that demand materials capable of withstanding pressure and temperature extremes. It’s commonly found in the production of boilers, pressure vessels, heat exchangers, storage tanks, and industrial furnaces, particularly in power plants, oil and gas, and chemical sectors. Moreover, it’s also used in shipbuilding and other high-pressure equipment where durability, toughness, and resistance to high-temperature stress are crucial. With its excellent weldability, strength, and long-lasting reliability, SA516 Grade 60 Boiler Sheet and Plate is the material of choice for challenging industrial applications around the globe.
