SA 516 grade 60 Sheets and Plates

Yunus Sheets and Plates is a well-known producer and supplier from Istanbul, Turkey, providing premium SA 516 Grade 60 sheets and plates for use in pressure vessel and boiler. With years of experience and state-of-the-art production facilities, we supply steel solutions conforming to ASME standards and stringent industrial requirements. Our SA 516 Grade 60 plates are appreciated for high weldability, notch toughness, and reliability under pressure. Catering to customers in the oil and gas, petrochemical, and power generation industries, Yunus Sheets and Plates is dedicated to supplying reliable materials for hostile service conditions worldwide.

SA516 Grade 60 Pressure Vessel Plates Turkey, ASTM A516 Grade 60 Boiler Quality Plates İzmir,SA516 Gr 60 BQ Plates Istanbul, SA 516 Gr 60 Hot Rolled Boiler Steel Plates West Istanbul, ASTM A516 Gr 60 Plates Bursa, SA516 Gr.60 Boiler Steel Plates Bodrum, A516 Grade 60 Boiler Plates Distributor Antalya, ASME SA 516 Gr 60 Boiler & Pressure Vessel Stockist in Istanbul, Turkey.

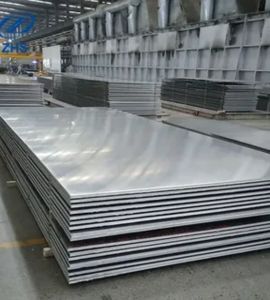

ASME SA516 Gr 60 Carbon Steel Plate

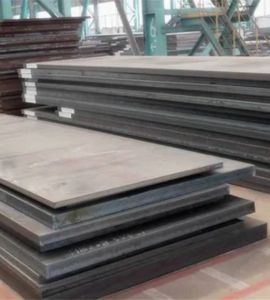

SA 516 Lower Temperature Carbon Steel Grade 60 Plates

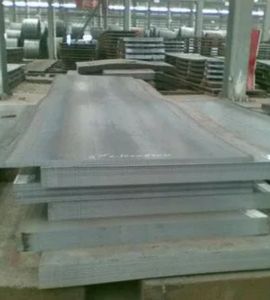

A516 Grade 60 HR Boiler Plates

ASME SA516 Gr 60 Carbon Steel Plate Turkey, SA 516 Lower Temperature Carbon Steel Grade 60 Plates Dealer İzmir,A516 Grade 60 HR Boiler Plates Istanbul, ASTM A516 Gr 60 Boiler Plates Exporter West Istanbul, SA 516 Gr 60 Carbon Steel Pressure Vessel Plates Bursa, SA516 Grade 60 Pressure Vessel & Boiler Plates Supplier in Bodrum, SA285 Gr.A Boiler Steel Plates Antalya.

SA 516 Grade 60 plates and sheets are carbon steel plates with a primary application being for moderate- and low-temperature pressure vessel use. The average chemical composition consists of carbon (0.21% maximum), manganese (0.55–0.98%), phosphorus (maximum 0.035%), and sulfur (maximum 0.035%). These plates are available with a minimum tensile strength of 415–550 MPa and minimum yield strength of 260 MPa. With enhanced elongation and resistance to impact, SA 516 Grade 60 finds application for superior notch toughness and weldability. Its mechanical properties are appropriate for forming and fabrication but still retain structural integrity under conditions of pressure and fluctuating temperature.

SA 516 grade 60 Sheets and Plates Specification

Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT

Chemical Composition Of SA 516 grade 60 Sheets and Plates

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.18	0.4	0.95/1.50	0.015	0.008	0.02 (Min)	0.3	0.3	0.3	0.08	0.01	0.03	0.02

Mechanical Properties Of SA 516 grade 60 Sheets and Plates

Tensile strength (ksi)	Yield strength (ksi)	Elongation min, % 200 mm (8 in)	Elongation min, % 50 mm (2 in)
485-620 (70-90)	260 (38)	17	21

SA516 Grade 60 Pressure Vessel Plates Turkey, ASTM A516 Grade 60 Boiler Quality Plates İzmir,SA516 Gr 60 BQ Plates Istanbul, SA 516 Gr 60 Hot Rolled Boiler Steel Plates West Istanbul, ASTM A516 Gr 60 Plates Bursa, SA516 Gr.60 Boiler Steel Plates Bodrum, A516 Grade 60 Boiler Plates Distributor Antalya, ASME SA 516 Gr 60 Boiler & Pressure Vessel Stockist in Istanbul, Turkey.

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest SA 516 grade 60 Sheets and Plates Manufacturer and Exporter in Istanbul, Turkey

Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

ASME SA516 Gr 60 Steel Plate Turkey, SA 516 Lower Temperature Carbon Steel Grade 60 Plates Dealer İzmir,A516 Grade 60 HR Boiler Plates Istanbul, ASTM A516 Gr 60 Boiler Plates Exporter West Istanbul, SA 516 Gr 60 Carbon Steel Pressure Vessel Plates Bursa, SA516 Grade 60 Pressure Vessel & Boiler Plates Supplier in Bodrum, SA285 Gr.A Boiler Steel Plates Antalya.

SA 516 Grade 60 Sheets and Plates offer several advantages, making them ideal for pressure vessel applications. They provide excellent weldability, ensuring strong and reliable joints in fabrication. With superior notch toughness, they perform well in low to moderate temperature environments. The material exhibits high strength and durability, ensuring resistance to cracking and deformation under stress. Additionally, SA 516 Grade 60 plates are cost-effective, offering good performance at a competitive price. Their versatility makes them suitable for various industries, including oil, gas, and power generation, ensuring long-lasting and safe operation.

Types of SA 516 grade 60 Sheets and Plates

Are Custom Sizes Available for SA 516 grade 60 Sheets and Plates?

Yes, we offer custom sizes for SA 516 grade 60 Sheets and Plates to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of SA 516 grade 60 Sheets and Plates

Sheets and plates of SA 516 Grade 60 find extensive applications in the fabrication of boilers, heat exchangers, and pressure vessels under moderate temperature conditions. They are best for use in oil and gas, chemical processing, power generation, and refineries where reliability and resistance to internal pressure are critical. The plates are also best used for storage tanks, piping systems, and equipment under high pressure. With great toughness and consistent performance, SA 516 Grade 60 materials are preferred for their potential to withstand varying pressure and temperature without losing durability and safety over long periods of time.
