Phosphorous Bronze Sheets and Plates

Yunus Sheets and Plates, based in Istanbul, Turkey, is a reputable manufacturer and supplier of **Phosphor Bronze Sheets and Plates**. These products are highly regarded for their impressive strength, durability, and resistance to corrosion. You’ll find these sheets and plates in various applications that demand toughness, wear resistance, and a long lifespan. Crafted in line with international standards, they come in a range of sizes, grades, and finishes to cater to global industrial needs. At Yunus Sheets and Plates, the focus is on quality, precision, and ensuring customer satisfaction, which guarantees the reliable performance of Phosphor Bronze Sheets and Plates across essential industries both at home and abroad.

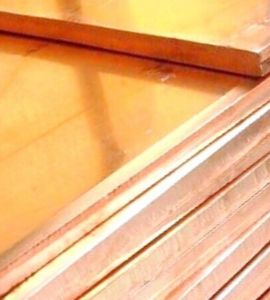

Phosphorous Bronze Plate

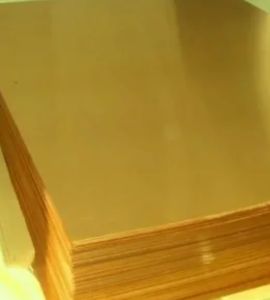

Phosphorous Bronze HR Plates

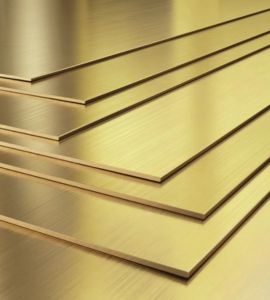

Phosphorous Bronze CR Sheet

ASTM B103 Phosphor Bronze Sheets Dealer in West Istanbul, Phosphorous Bronze Plates Supplier in West Istanbul, Phosphorous Bronze Sheets in Bodrum, Phosphorous Bronze Plates Size Chart, Phosphorous Bronze Sheet Price in Antalya, Phosphorous Bronze Plates Supplier in Turkey, Phosphorous Bronze Sheet Stockist in Bursa, Alloy Sheets and Plates Exporter in Turkey, Alloy Sheet Stockist in Istanbul, Phosphorous Bronze Plates Supplier in Bursa

**Phosphor Bronze Sheets and Plates** are copper-based alloys primarily made up of copper, tin, and phosphorus. The inclusion of tin enhances strength and corrosion resistance, while phosphorus boosts wear resistance, hardness, and stiffness. These alloys are known for their excellent fatigue resistance, high tensile strength, and toughness. They also retain good ductility and machinability, making them ideal for complex fabrication tasks. Their mechanical properties include high elasticity, a low coefficient of friction, and outstanding spring qualities, which make Phosphor Bronze Sheets and Plates dependable materials for demanding applications in electrical, marine, and industrial settings.

Phosphorous Bronze Sheets and Plates Specification

Material	Phosphor Bronze Sheet/Plate
Grade	Alloy 510, Alloy 521, Alloy 519, Alloy 544
Standard	ASTM B103
Size	Thickness 0.1 mm to 50 mm; Width up to 500 mm; Length up to 2000 mm
Surface	Rolling surface, Chemical cleaned, Grinding

Chemical Composition of Phosphorous Bronze Sheets and Plates

Element	Zinc (Zn)	Iron (Fe)	Tin (Sn)	Copper (Cu)	Lead (Pb)	Phosphorous (P)	Nickel (Ni)	Others
%	.00 – .20	.00 – .10	4.50 – 5.50	Balance	.00 – .02	.01 – .40	.00 – .20	.00 – .20

Mechanical Properties Of Phosphorous Bronze Sheets and Plates

Tensile strength	Hardness	Elongation at break	Modulus of elasticity	Izod impact strength	Shear strength
320 – 740 MPa	Brinell : 80 – 225	< 60 %	90 – 120 GPa	62 J m⁻¹	250 – 430 MPa

Electrical Properties of Phosphorous Bronze Sheets and Plates

Electrical resistivity	11-16 µOhmcm
Temperature coefficient	0.00060 – 0.00070 K⁻¹

Phosphorous Bronze Sheets Price in Antalya, Phosphorous Bronze Hot Rolled Weight Chart, Phosphorous Bronze Cold Rolled Supplier in Turkey, Stockist of Phosphorous Bronze Alloy Cold Rolled Sheets in Bursa, Phosphorous Bronze Perforated Sheet Supplier in Turkey, Phosphorous Bronze 2B Finish Plates Price List in Istanbul, Alloy Perforated Plates Supplier in Bursa, Phosphorous Bronze Chequered Plates Exporter in West Istanbul, Phosphorous Bronze Alloy Polished Plates Exporter in Turkey, Phosphorous Bronze Perforated Plates Exporter in Bodrum, Phosphorous Bronze Sheet and Plate in Antalya

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Phosphorous Bronze Sheets and Plates Manufacturer and Exporter in Istanbul, Turkey

Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Thermal Properties of Phosphorous Bronze Sheets and Plates

Melting Point	Thermal Conductivity	Electrical Conductivity 20°C	Coeff. of Thermal Expansion 20-300°C	Specific Heat
1050°C	69 W/m°C	15% IACS	17.8 x 10-6	377 J/Kg°K

Fabrication Properties of Phosphorous Bronze Sheets and Plates

Machinability Rating	Annealing Temperature	Hot formability	Stress Relieving temperature	Cold Formability
20%	675 to 745°C	Limited	200 to 350°C	Excellent

Phosphorous Bronze Sheets and Plates Sizes

Dimensions in mm	Thickness in mm
200 X 150	.2
200 X 150	.25
200 X 150	.3
200 X 150	.4
200 X 150	.5
200 X 150	.8
200 X 150	1

Phosphorous Bronze Sheets and Plates Weight Chart

Size in mm (L * W * T)	Weight in kilogram
2000 * 300 * .5	2.69
2000 * 300 * .6	3.23
2000 * 300 * 1.2	6.46
2000 * 300 * 2	10.75
2000 * 300 * 2.5	13.43
2000 * 300 * 3	16.12

Phosphorous Bronze Clad Sheets Distributor in Turkey, Phosphorous Bronze 2B Finish Plates Supplier in Istanbul, Phosphorous Bronze Perforated Sheet Weight Chart, Phosphorous Bronze Plate Exporter in Bursa, Phosphorous Bronze Polished Sheets Manufacturer in West Istanbul, Phosphorous Bronze Shim Sheet and Plate Price List in Turkey, Phosphorous Bronze Chequered Plates Sizes in mm, Phosphorous Bronze Alloy Hot Rolled Plate Distributor in Bodrum, Phosphorous Bronze Sheets and Plates Antalya

Phosphor bronze sheets and plates are made from a small percentage of copper and tin phosphorus, which increases their strength, corrosion resistance and machinability In typical products 90-95% copper, 5-1. 8% tin, 0.01-0 and .35% phosphorus. These alloys exhibit excellent mechanical properties such as high tensile strength (up to 600 MPa), excellent fatigue resistance and low abrasion resistance, especially corrosion resistance in marine and chemical environments, and also high toughness, Because of their high durability and durability, phosphor copper sheets and plates are ideal for precision applications in a variety of industrial applications.

Types of Phosphorous Bronze Sheets and Plates

Phosphorous Bronze Plates Manufacturer in West Istanbul, Phosphorous Bronze Plates and Sheets Bodrum, ASME SB 103 Phosphorous Bronze Plates Supplier in Istanbul, Phosphorous Bronze Polished Plates Exporter in Bursa, Phosphorous Bronze Alloy Chequered Plates Price List in Turkey, Phosphorous Bronze Cold Rolled Plate Distributor in Bodrum, Phosphorous Bronze Clad Plates and Sheets Supplier in West Istanbul, Phosphorous Bronze Sheet and Plate Distributor in Turkey, Phosphorous Bronze Perforated Plate Sizes in mm

Are Custom Sizes Available for Phosphorous Bronze Sheets and Plates?

Yes, we offer custom sizes for Phosphorous Bronze Sheets and Plates to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Phosphorous Bronze Sheets and Plates

**Phosphor Bronze Sheets and Plates** find extensive use in industries that require exceptional wear resistance, toughness, and corrosion protection. They are commonly used in the production of electrical connectors, springs, bushings, and bearings due to their remarkable fatigue and conductivity properties. In the marine industry, they are utilized for ship components and hardware because of their ability to withstand seawater corrosion. Industrial applications include gears, fasteners, and precision instruments that need to perform reliably over time. Their unique blend of strength and elasticity makes them a go-to choice for various demanding applications.
