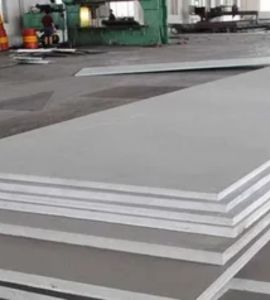

Yunus Sheets and Plates is a well-established Turkish-based manufacturer and supplier of superior-quality Inconel 617 sheets and plates with high oxidation resistance and strength at higher temperatures. Manufactured through superior alloying and heat treatment technologies, our Inconel 617 materials uphold high international standards and have extensive applications in the aerospace, power generation, and chemical industries. With strict quality control and advanced manufacturing facilities, Yunus Sheets and Plates offers long-lasting and dependable Inconel 617 sheets and plates for tough applications under severe conditions.
Inconel 617 plate and sheet are nickel-chromium-cobalt-molybdenum alloys with around 52% nickel, 22% chromium, 13% cobalt, and 9% molybdenum. The alloy composition offers excellent resistance to carburization, oxidation, and high-temperature corrosion up to 1093°C (2000°F). The alloy is exceptional in terms of mechanical strength, creep resistance, and thermal stability and possesses good fabricability and weldability. Inconel 617 also retains toughness and structural integrity in harsh chemical and thermal environments and is suitable for high-performance engineering applications.
Standards : ASTM B168 / ASME SB168, SAE AMS 5888, SAE AMS 5889
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| Element | Yield Strength | Tensile Strength | Elongation % | Reduction of Area | Hardness, BHN | ||
| ksi | MPa | ksi | MPa | ||||
| Inconel 617 | 50.9 | 351 | 109.5 | 755 | 58 | – | 173 |
| Grade Inconel 617 | Ni | Cr | Fe | Mo | Co | Mn | Cu | Al | Ti | Si | C | S | P |
| MIN | 44.2 | 20.0 | – | 8.0 | 10.0 | – | – | 0.8 | – | – | – | – | – |
| MAX | 56.0 | 24.0 | 3.0 | 10.0 | 15.0 | 0.5 | 0.5 | 1.5 | 0.6 | 0.5 | 0.15 | 0.015 | 0.015 |
| STANDARD | UNS | WNR. |
| Alloy 617 | N06617 | 2.4663 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 617 Sheets and Plates offer numerous advantages, making them a preferred choice for high-performance applications. They exhibit excellent resistance to oxidation and carburization, even at temperatures exceeding 1000°C. Their superior mechanical strength and exceptional creep resistance ensure durability under extreme pressure and heat. The alloy’s corrosion resistance extends to acidic and high-moisture environments, enhancing its versatility. Additionally, its thermal stability and weldability make it easy to fabricate into complex structures. These properties make Inconel 617 ideal for aerospace, chemical processing, power generation, and gas turbine components.
Yes, we offer custom sizes for Inconel 617 Sheets and Plates to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
| Thickness | Plate Weight per Unit Area | Density |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Inconel 617 plates and sheets are extensively applied in gas turbines, heat exchangers, aerospace parts, nuclear reactors, and chemical processing hardware. They find ideal applications where there is a need for resistance to corrosion and high-temperature oxidation with mechanical strength and durability. Pollution control systems, furnace parts, and power plants are also areas where sheets and plates of Inconel 617 are used to withstand extreme thermal cycling and harsh environments. Their strength, corrosion resistance, and thermal stability combined make Inconel 617 plates and sheets an ideal choice in critical, high-temperature applications.
