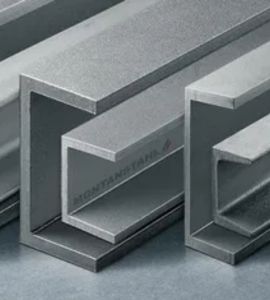

Yunus Sheets and Plates is a trusted Istanbul-based Turkish manufacturer and supplier of superior quality Inconel 601 channels that are renowned for their superior oxidation resistance and temperature strength. Our Inconel 601 products are produced by high-tech metallurgical processes, which adhere to stringent international standards of operation under harsh conditions. With accurate quality control and state-of-the-art production facilities, Yunus Sheets and Plates provides Inconel 601 channels to aerospace, power generation, and chemical processing industries with heavy-duty, reliable materials made for demanding high-temperature structural uses.
Inconel 601 channels are iron-nickel-chromium alloys with about 61% nickel and 23% chromium, together with iron, aluminum, and carbon additions. The composition offers exceptional resistance to oxidation and carburization up to 1200°C (2192°F). The alloy retains high tensile properties and very good creep resistance following long exposure at elevated temperatures. Inconel 601 also has good fabricability and weldability and can be used for complicated form and demanding applications in severe environments.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Inconel 601 | 0.10 max | 1 max | 0.50 max | 1 max | 0.15 min | balance | – | 58.0-63.0 | 21.0–25.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yunus Sheets and Plates based in Istanbul, Turkey, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 601 Channels offer several advantages, making them ideal for high-temperature and corrosive environments. Their exceptional oxidation and carburization resistance at temperatures up to 2200°F (1200°C) ensure long-lasting performance in extreme conditions. The alloy’s high tensile strength, excellent fatigue and thermal-fatigue strength, and resistance to various corrosive media, including sulfur compounds, provide reliable durability. Inconel 601 also demonstrates good weldability and formability, making it versatile for various applications. These properties make it suitable for industries like aerospace, chemical processing, and power generation, where materials are subjected to high heat and stress.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 601 Channel to meet specific project needs. Our team at Yunus Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Inconel 601 channels are extensively utilized in high-temperature structural uses like furnace parts, heat exchangers, gas turbines, and aeronautical components. They are suited for applications demanding resistance against oxidation, scaling, and thermal cycling. These channels are also used in chemical processing plants, nuclear reactors, and petroleum chemical industries where toughness and strength in intense heat and corrosive atmospheres are needed. Their environmental resistance and mechanical strength make Inconel 601 channels the first option for high-temperature engineering applications that demand a lot.
