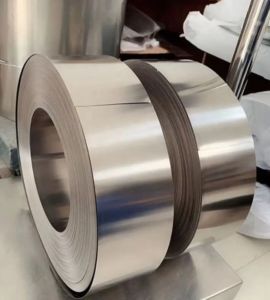

Yunus Sheets and Plates, based in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of Alloy C263 Foil, providing top-notch nickel-based alloy solutions to industries around the globe. The company is well-regarded for its dedication to quality, innovation, and ensuring customer satisfaction. Their products are designed to offer a perfect blend of strength, durability, and exceptional heat resistance. The Alloy C263 Foil from Yunus is particularly noted for its impressive corrosion resistance, stability at high temperatures, and ease of fabrication, making it an ideal choice for critical engineering applications. With a focus on precision manufacturing and strict adherence to international standards, Yunus Sheets and Plates delivers dependable solutions that meet even the toughest industrial demands.
Alloy C263 Foil is a superalloy made from nickel, cobalt, and chromium, enhanced with molybdenum, titanium, and aluminum. This unique chemical makeup provides remarkable resistance to corrosion and oxidation, along with outstanding properties at high temperatures. On the mechanical side, Alloy C263 boasts superior tensile strength, fatigue resistance, and exceptional creep-rupture performance at temperatures reaching up to 815°C. It also offers excellent ductility and weldability, making fabrication straightforward without sacrificing mechanical integrity. This remarkable combination of chemical and mechanical characteristics makes Alloy C263 Foil a go-to material for industries that need high strength, heat resistance, and reliable long-term performance in harsh environmental and mechanical conditions.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.359 g/cm3 | 0.302 lb/in3 |
| Melting point | 1300-1335°C | 2372-2471°F |
Alloy C263 foil provides excellent advantages for high temperature applications. It provides outstanding resistance to oxidation and creep, making it ideal for aerospace and industrial applications. The high weldability and formability of the alloy ensures easy fabrication in complex shapes. Its excellent thermal stability and resistance to cracking under thermal cycling enhances reliability in extreme conditions. Additionally, alloy C263 exhibits corrosion and oxidation resistance up to 980°C (1800°F), providing long durability. Its combination of strength, ductility and thermal performance makes it desirable in gas turbines and heat treatment equipment.
Alloy C263 Foil finds extensive use in sectors where heat, oxidation, and stress resistance are paramount. In aerospace, it’s utilized in gas turbines, combustor liners, exhaust components, and jet engine parts, thanks to its ability to thrive in extreme temperatures. The power generation industry incorporates it into turbine hot-section components, while the chemical processing sector uses it in reactors, heat exchangers, and high-temperature vessels that face corrosive environments.
